Wear Alumina Ceramic Tube

Core adaptation to procurement areas and engineering scenarios

South American Mining Belt: Iron ore tailings pipelines and copper ore slurry transportation projects in Brazil and Chile.

Southeast Asian chemical clusters: pipelines for transporting chemical powders and palm oil residues from Indonesia and Malaysia.

Australian mining areas: Pipelines for transporting iron ore and bauxite, and pipelines supporting washing and processing plants.

Middle East energy production areas: oil and gas field sand and gravel transportation, refinery powder material transportation pipelines

North American Power and Mining: Fly Ash Transportation for US Power Plants, Metal Slurry Transportation Projects in Canada

European Building Materials & Environmental Protection: Cement Raw Material Conveying Pipelines and Waste Incineration Fly Ash Conveying Pipelines in Germany and Poland

The factory supports one-stop delivery of complete pipeline systems for overseas markets, including customs clearance in the country of origin and installation accessories. It can provide global engineering contractors, mining companies, and power and chemical groups with pipeline selection and customization solutions adapted to local working conditions.

Wear Alumina Ceramic Tube steel ceramic composite pipe

Product Core Performance Advantages

As a pre-fabricated Alumina Ceramic Mosaic Lined Pipe, our Wear Alumina Ceramic Tube offers several distinct advantages over on-site hand-lined pipes and ordinary alloy wear-resistant pipes:

Steel-ceramic dual-phase composite, meeting both strength and wear resistance standards: The outer layer uses high-quality carbon steel pipe to withstand pressure and impact, while the inner layer is inlaid with 92%/95% high-purity alumina ceramic for wear resistance and corrosion protection. It combines the mechanical strength of steel pipe with the ultra-high wear resistance of ceramic, can withstand high-pressure transportation and external impact, and is suitable for complex outdoor working conditions.

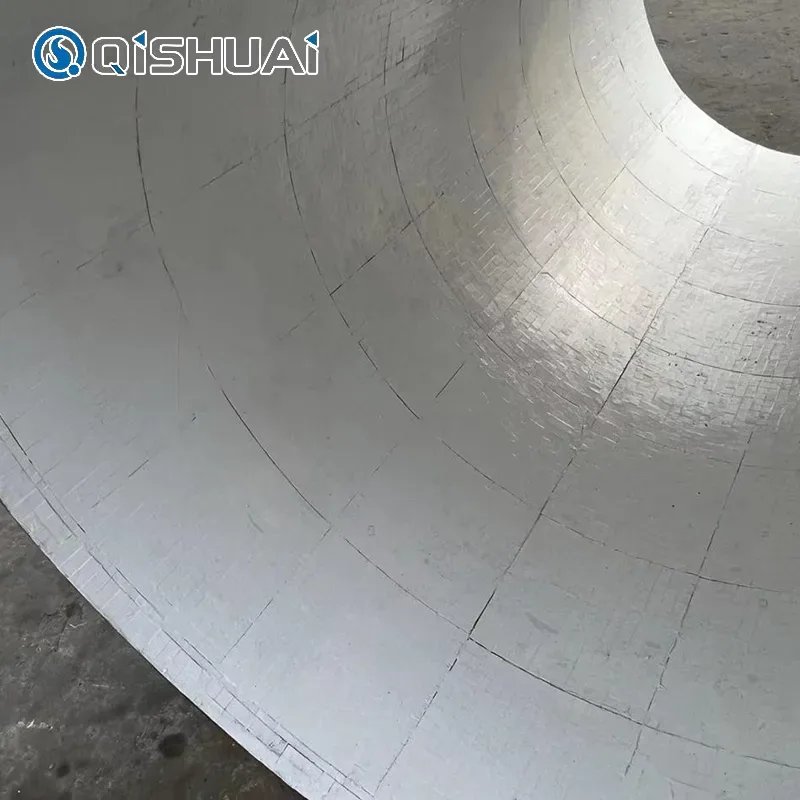

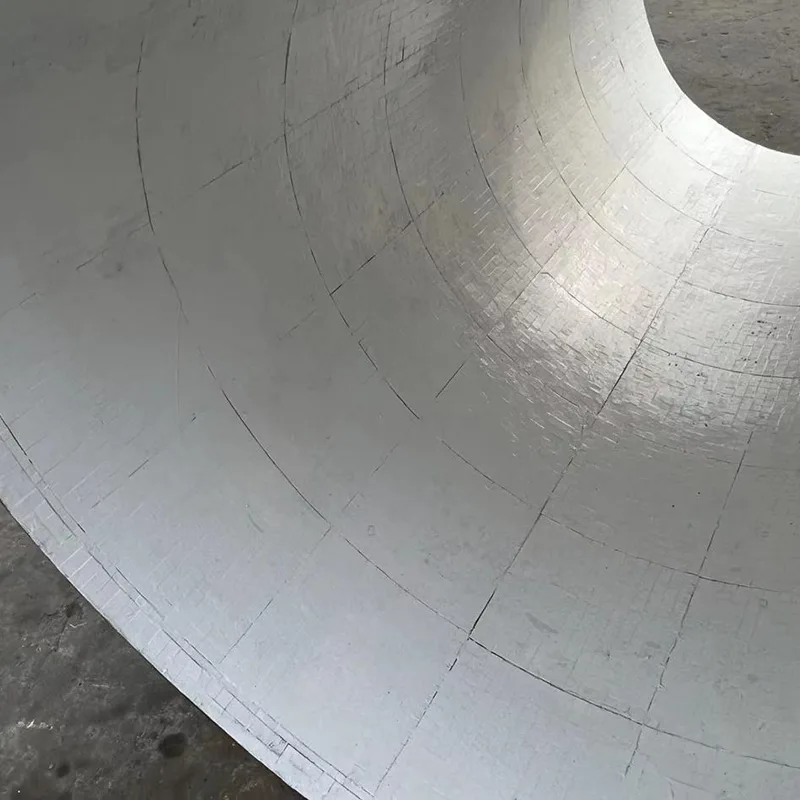

Prefabricated lining process, smooth inner wall without protrusions: Factory-standardized prefabricated ceramic lining, mosaic pieces tightly spliced with minimal gaps, smooth inner wall without steps, low conveying resistance, no material blockage or accumulation, and higher efficiency in conveying powder and slurry.

Complete finished product delivery, high on-site installation efficiency: The pipeline is a complete finished product delivered from the factory, which does not require on-site lining construction. On-site, only flange/welding connection is required to put it into use, shortening the construction cycle by 80% and greatly reducing pipeline downtime and modification time.

With an ultra-long wear-resistant lifespan and lower overall cost: The inner lining of alumina ceramic has a Mohs hardness of 9, and its wear resistance is 10-15 times that of ordinary seamless steel pipes and 3-5 times that of alloy wear-resistant pipes. This significantly reduces the frequency of pipe replacement and downtime losses, resulting in a significant cost advantage throughout the entire life cycle.

Corrosion and temperature resistant, suitable for complex media: The ceramic layer has stable chemical properties, is resistant to acid and alkali corrosion and material erosion, and can operate stably in conditions ranging from -50℃ to 500℃. It is suitable for conveying various media such as mineral slurry, powder, corrosive waste liquid, and high-temperature flue gas.

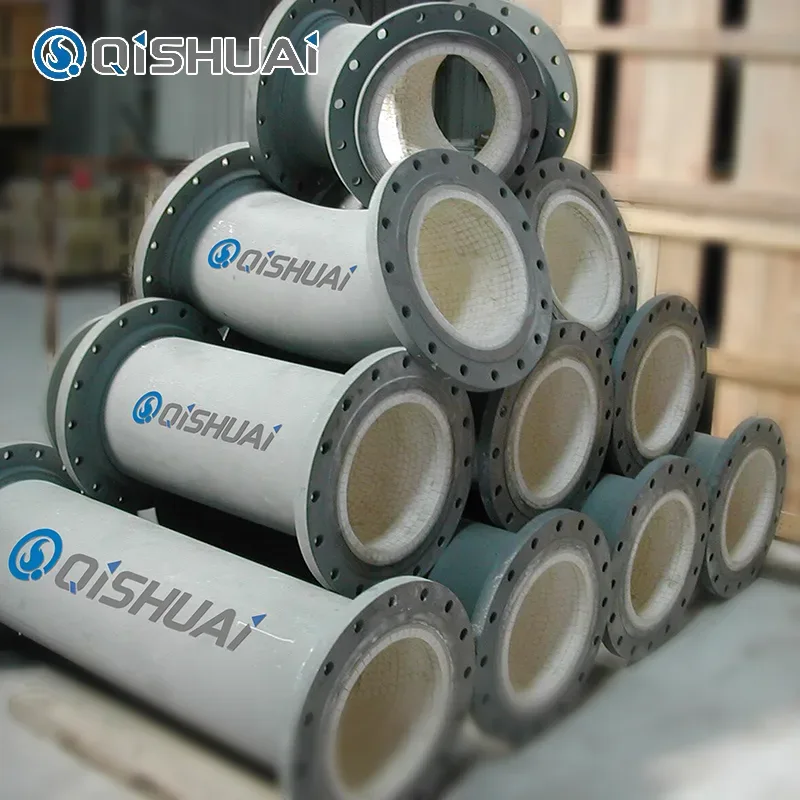

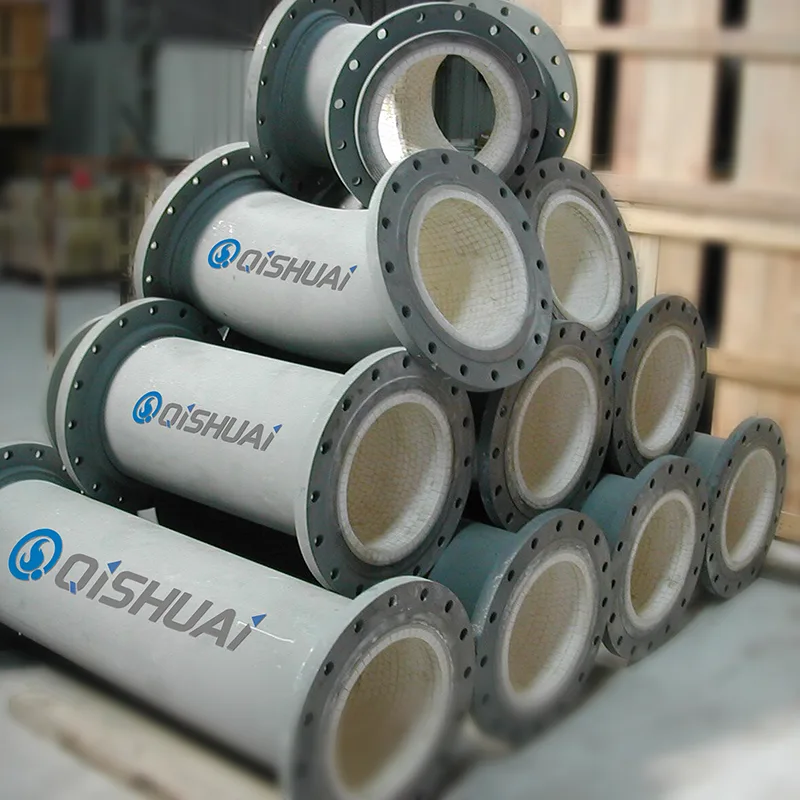

Full range of pipe fittings, seamless adaptation for the entire production line: In addition to straight pipes, ceramic-lined elbows, tees, reducers, crosses and other irregular pipe fittings can be customized simultaneously, ensuring no weak points in the entire production line protection and completely solving the problem of excessive wear and tear on easily worn parts such as elbows and reducers.

Stable quality control from the original manufacturer, complete specifications and ample stock: standard pipe diameters are always in stock, supporting large-volume engineering orders, and complete original manufacturer quality inspection reports and material certificates can be provided to meet overseas project acceptance standards.

Technical Specifications

Alumina Ceramic Mosaic Lined Pipe cross section

Core application industries and operating conditions

Wear Alumina Ceramic Tube is designed for long-distance material pipeline transportation, and its application areas are completely different from those of ceramic lining bricks, combustion nozzles, refractory crucibles, etc. It is a core product for wear-resistant upgrades of pipelines in the mining, power, and chemical industries.

Widely used in scenarios such as: mine tailings and concentrate slurry transportation, power plant fly ash and coal pipeline transportation, chemical powder and corrosive slurry transportation, metallurgical slag and slurry transportation, building material cement raw material and clinker transportation, grain processing granular material transportation, and waste incineration fly ash transportation, etc. It is specifically designed to solve industry pain points such as wear and perforation of transportation pipelines, leakage, frequent replacement and maintenance, and high operation and maintenance costs.

Original factory quality and cross-border service guarantee

Shandong Qishuai Wear-Resistant Equipment Co., Ltd. is a professional supplier of Composite Wear Pipe series products. With more than ten years of experience in the research and development and production of Alumina Ceramic Mosaic Lined Pipe, we have mature pipe composite technology and complete line engineering support capabilities, serving industrial customers in many industries around the world.

The factory adheres to full-chain control, including original factory prefabrication, original factory quality inspection, and original factory after-sales service. All Wear Alumina Ceramic Tubes undergo triple factory inspections, including water pressure testing, abrasion resistance testing, and dimensional calibration, ensuring stable and reliable quality. We provide overseas customers with a one-stop service including free pipeline selection, complete line solution design, on-site installation guidance, and cross-border after-sales follow-up. We support sample testing, bulk customization, and complete line engineering support, responding to procurement quotation requests within 24 hours.

FAQ

Q1: What are the advantages of Wear Alumina Ceramic Tube over ordinary wear-resistant steel pipe?

Ordinary wear-resistant steel pipes rely on alloy materials for wear resistance, but their service life is limited . Our pipes have a high-hardness alumina ceramic inner layer, which has more than 10 times the wear resistance of ordinary steel pipes. In addition, the inner wall is smooth and does not clog, and is corrosion-resistant. The total cost of use is lower, making them more suitable for high-wear, long-cycle transportation pipelines.

Q2: Besides straight pipes, can irregularly shaped pipe fittings such as elbows and tees also be lined with ceramic?

Absolutely. We support customization of the entire range of pipe fittings, including 90°/45° elbows, equal/reducing tees, concentric/eccentric reducers, crosses, and other irregularly shaped fittings. All of these can be lined with alumina ceramic to achieve wear-resistant protection throughout the entire pipeline without any weak points.

Q3: Is the installation of ceramic-lined pipes complicated, and does it require special construction?

Installation is very simple. The product is a prefabricated pipe, which can be installed on site simply by flange or welding. No on-site lining is required. Ordinary pipe installation teams can complete the installation, and we can also provide remote installation technical guidance.

Q4: Do you have standard-sized pipes in stock? What is the lead time for custom orders?

We maintain a regular inventory of straight pipes in common diameters from DN50 to DN300, and orders for in-stock items can be shipped within 48 hours. For custom orders of large diameter and irregular-shaped pipe fittings, the production cycle is 10-15 working days, and production can be prioritized according to the project schedule to ensure the progress of overseas projects.

Q5: What engineering supporting documents can be provided for export procurement?

We can provide a complete set of original factory technical specifications, material testing reports, factory water pressure test reports, product installation instructions, packing lists, customs declaration documents, etc., free of charge, to meet all the needs of overseas customs clearance, project bidding and project completion acceptance.
