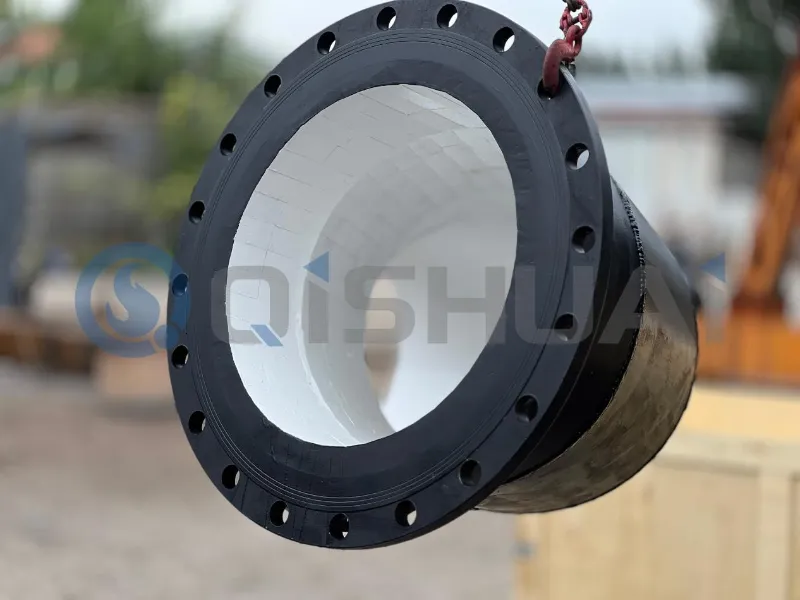

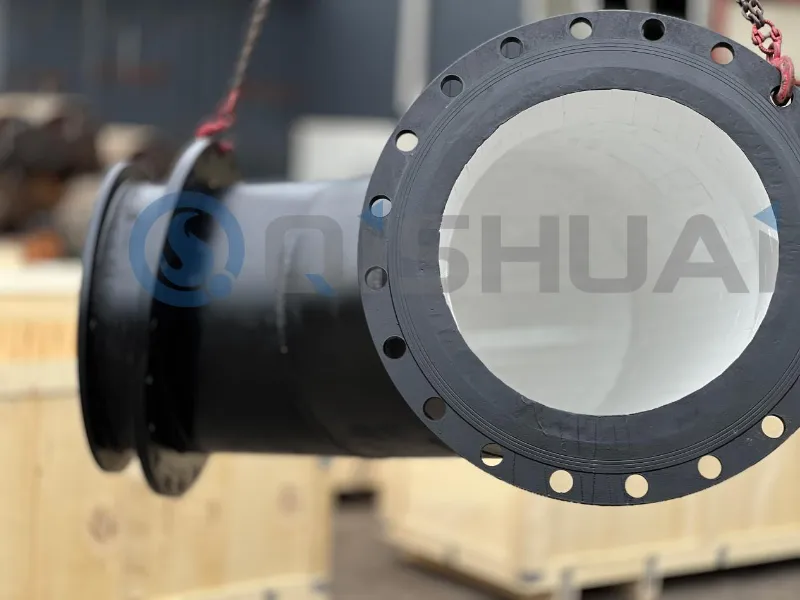

Shandong Qishuai Wear-Resistant Equipment Co., Ltd. specializes in customized wear-resistant pipeline solutions and deeply analyzes how bend radius shapes the service performance of Ceramic Lined Elbows in industrial conveying systems. Many factory operators overlook radius differences when they procure it, resulting in uneven wear, frequent lining damage and unnecessary maintenance downtime on pneumatic conveying and powder handling lines.
Unlike straight pipelines, pipe elbows bear dual damage of particle impact and sliding abrasion during material transportation. Due to physical inertia, solid particles cannot change direction synchronously with airflow, and will continuously strike and scour the outer wall of the elbow. The bend radius directly changes the particle movement trajectory, wear concentration range and stress distribution, which fundamentally determines the overall durability of it in long-term operation.
Wear Characteristics of Small-Radius Ceramic Lined Elbows
Small-radius elbows feature sharp turning angles, leaving no sufficient buffer distance for material steering. Abrasive particles collide with the outer lining surface abruptly, forming a highly concentrated fixed wear zone. This working condition combines strong instantaneous impact and continuous sliding friction, putting forward higher requirements on the hardness and impact resistance of the lining material.
In actual industrial operation, small-radius bends are more prone to local lining thinning and damage. For this scenario, we usually adopt high-hardness integral ceramic lining and strengthen the key impact areas to adapt to intensive particle scouring. For extreme high-impact working conditions, users can also match our rubber ceramic composite series for buffered protection.
Wear Performance of Large-Radius Ceramic Lined Elbows
Large-radius elbows enable materials to turn gently and disperse particle-wall interaction across a longer curved section. This design effectively reduces instantaneous impact force and avoids localized severe wear. Although the single-point wear degree is weakened, the overall wear coverage area expands, requiring full and uniform lining protection for the entire bend section.
Large-radius Ceramic Lined Elbows are suitable for long-distance, high-flow conveying scenarios. Their stable and balanced wear features help extend the overall maintenance cycle of the pipeline system. To meet diversified site demands, our full-range product lineup covers chromium carbide overlay series, Ceramic Rubber Composite Plates series, Composite Wear Pipe series and silicon carbide ceramic series, catering to impact, abrasion, high-temperature and corrosive working conditions of different pipeline systems.
Key Guidance for Selecting Elbow Radius and Lining Design
There is no universal standard for elbow radius selection. Procurement teams need to combine multiple site parameters including material hardness, particle size, conveying velocity and equipment operating cycle to confirm the optimal solution. Small-radius elbows focus on local impact reinforcement, while large-radius elbows emphasize full-circle uniform anti-abrasion protection.
Blindly adopting unified lining specifications for all elbows will lead to wasted costs or insufficient protection. Reasonable matching of radius structure and ceramic lining technology can maximize the service life of wear-resistant elbows and reduce long-term equipment operation costs for enterprises.
Get Customized Elbow Wear Protection Solutions
If you are preparing to purchase batch wear-resistant elbows or optimize the lining structure of existing conveying pipelines, you can send your specific working condition parameters and pipeline drawings to our email. The professional technical team of Shandong Qishuai Wear-Resistant Equipment Co., Ltd. will formulate targeted radius selection and lining upgrading schemes to help you solve pipeline wear problems stably.
