Experienced in manufacturing wear resistant material for over 10 years.Qishuai Wear Resistant Equipment Co., Ltd. is proud to offer ISO 9001 certified wear resistant material with quality control on each link from purchasing raw materials to finished products. Our global customers have been enjoying stable supply, competitive price and customized solutions for working conditions.
As for silicon carbide lined wear pipe, we are also committed to providing high-quality and customized products for our clients.

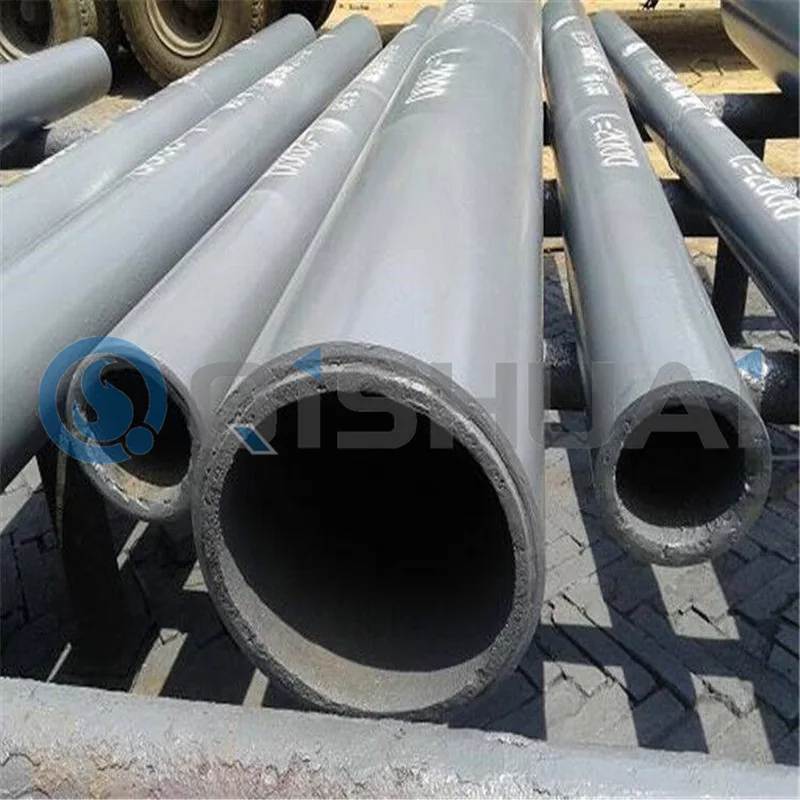

The outer steel shell of silicon carbide lined wear resistant pipe is coated with high quality silicon carbide (SiC). The Mohs hardness of silicon carbide is 9.5, which has strong wear resistance, corrosion resistance, and can work normally at high temperature (maximum 1400℃). This unique structure greatly reduces the maintenance time of equipment in conveying abrasive slurry, which is widely used in abrasive slurry transport in coal processing, metallurgy and chemical industry. Selecting our silicon carbide lined wear resistant pipe, you will definitely get satisfied with the fact that the service life of your equipment can be extended by 5-10 times compared with ordinary steel pipe.
Then focus on their strong points.
Our silicon carbide lined wear resistant piping introduction focuses on the fact that silicon carbide coating resists abrasion by corrosive solids which cause loss of material and leaking. Our ceramic lined pipe composite design takes advantage of the flexibility of the steel outer layer which makes the pipeline more stable in high vibration systems. The pipeline also has good thermal stability and will not deform or fail at high or low temperatures.
Browse our subcategories for specific applications:

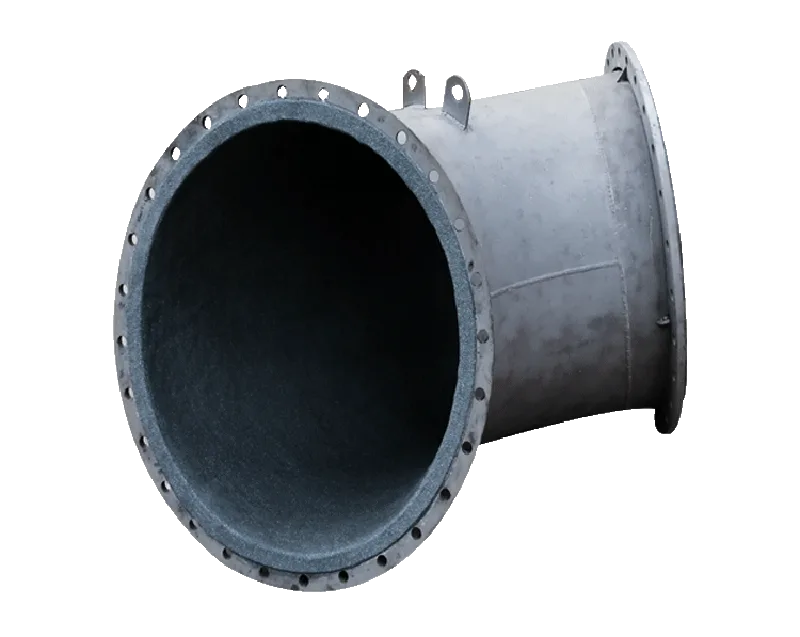

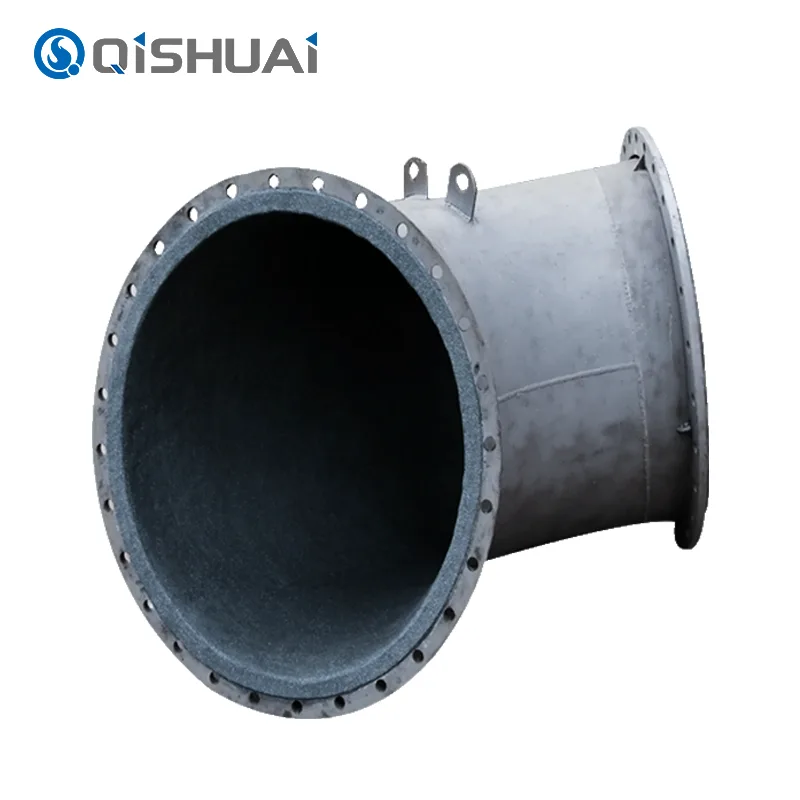

Silicon Carbide Lined Composite Elbows: Ideal for altering pipeline direction, providing smooth fluid flow with minimal pressure loss.

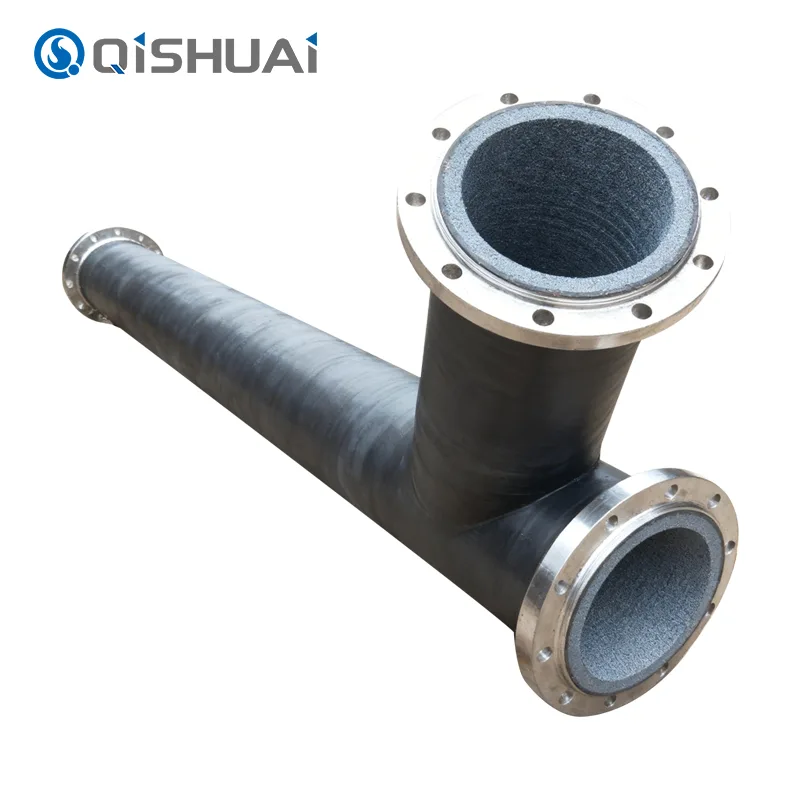

Silicon Carbide Lined Straight Pipes: Suitable for long-distance transport, customisable in both length and diameter.
To assist you in making an informed purchasing decision, we provide a detailed table outlining the key specifications of our Silicon Carbide Lined Wear Pipe. These data are based on standard models, though we can also customise products to meet specific client requirements.
|
Parameter |
Description |
Standard Range |
Advantages |
|
Material Composition |
Outer: High-strength carbon steel; Inner: 92-99% SiC ceramic |
N/A Not applicable |
Combines steel's toughness with SiC's hardness for balanced performance. |
|
Diameter |
Inner diameter options |
50mm - 800mm |
Flexible sizing for various flow rates; custom flanges available. |
|
Length |
Standard and custom lengths |
Up to 12 meters |
Reduces joints, minimizing leak points in long installations. |
|
Wall Thickness |
Combined steel + SiC thickness |
10mm - 50mm |
Optimized for pressure resistance up to 10MPa. |
|
Temperature Resistance |
Operational range |
-50°C to 1400°C |
Suitable for high-heat processes like incineration or smelting. |
|
Abrasion Resistance |
Measured by ASTM G65 |
Loss < 0.05g (superior to steel) |
Extends service life in abrasive media by 5-10x. |
|
Corrosion Resistance |
Against acids, alkalis, and salts |
pH 1-14 |
Inert lining prevents chemical degradation. |
|
Weight |
Per meter (approx. for 200mm dia.) |
15-25 kg/m |
Lighter than full ceramic, easing handling and reducing shipping costs. |
|
Certification |
Quality and safety standards |
ISO 9001, CE |
Ensures compliance for international exports. |
In today's eco-conscious market, our piping contributes to sustainable development. With extended service life, it reduces waste from frequent replacements. Silicon carbide is recyclable, and our production process minimises emissions through efficient kilns. Purchasing from us aligns with green initiatives and may qualify for environmental credits.
What are the advantages of silicon carbide? It possesses diamond-like hardness, offering superior wear resistance compared to aluminium oxide or zirconia.
Can I customise it? Yes, from wear-resistant linings to dimensions – contact us to purchase bespoke silicon carbide-lined wear-resistant piping.
