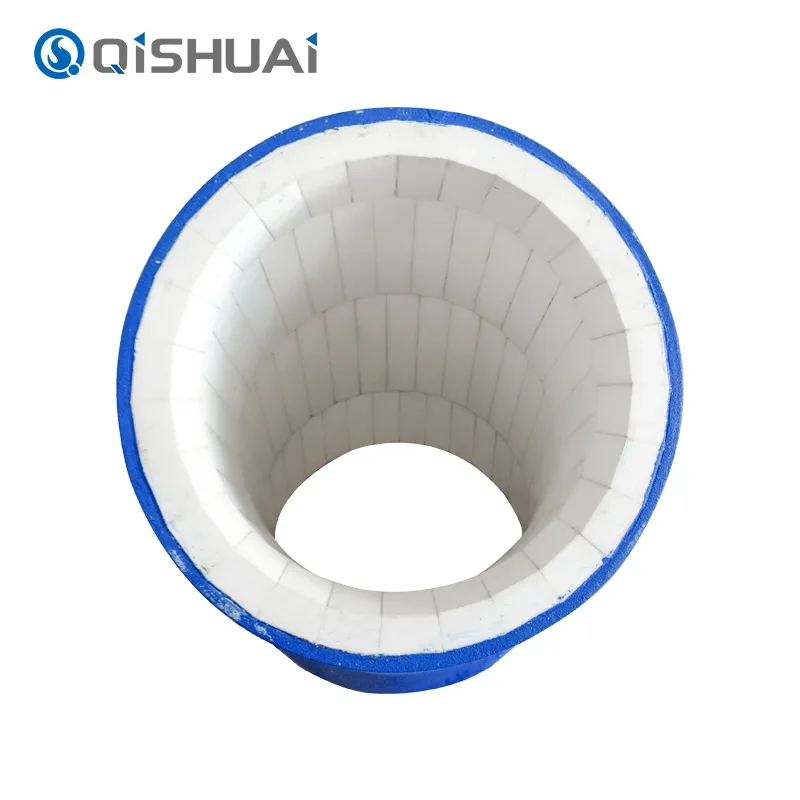

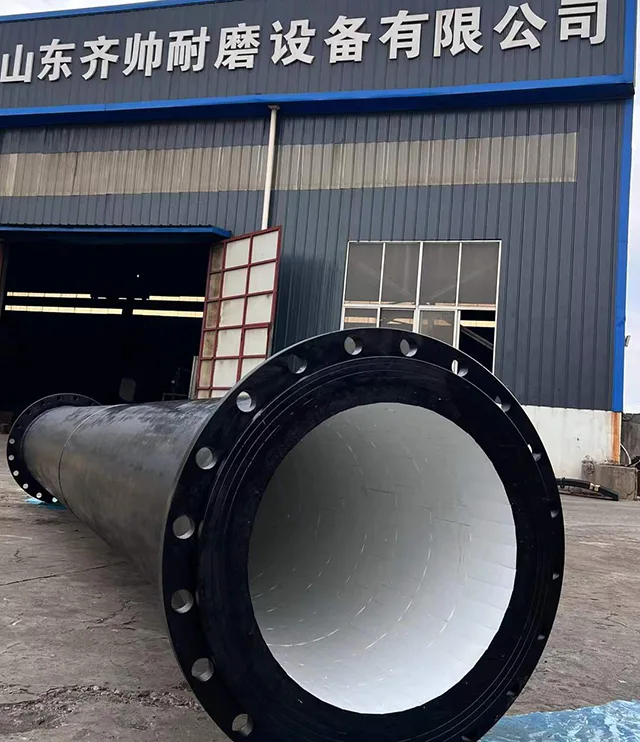

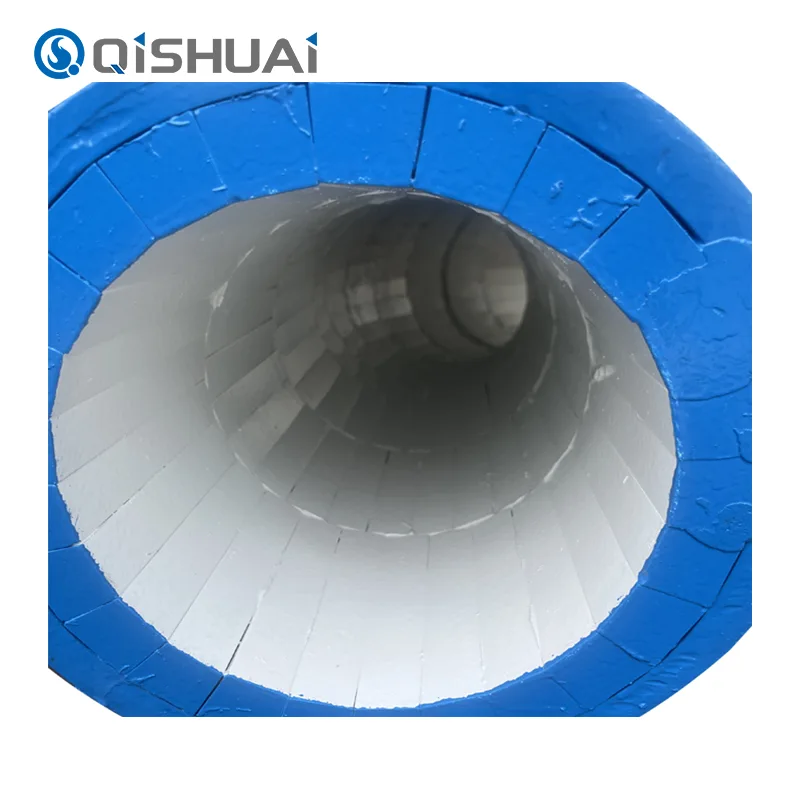

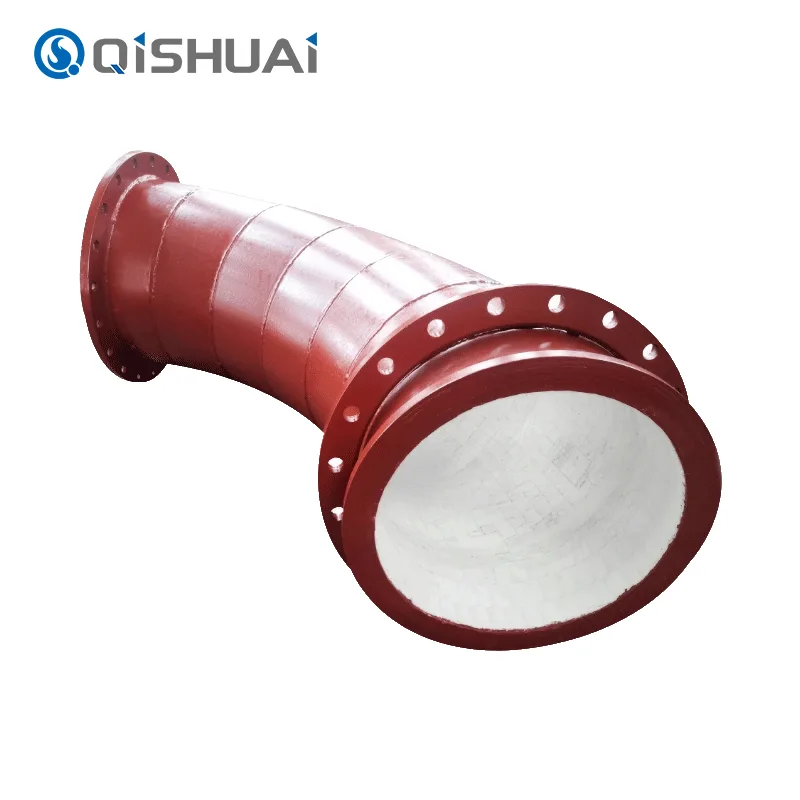

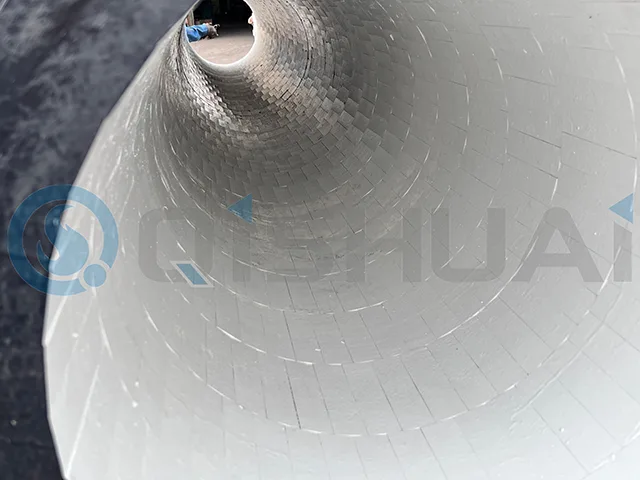

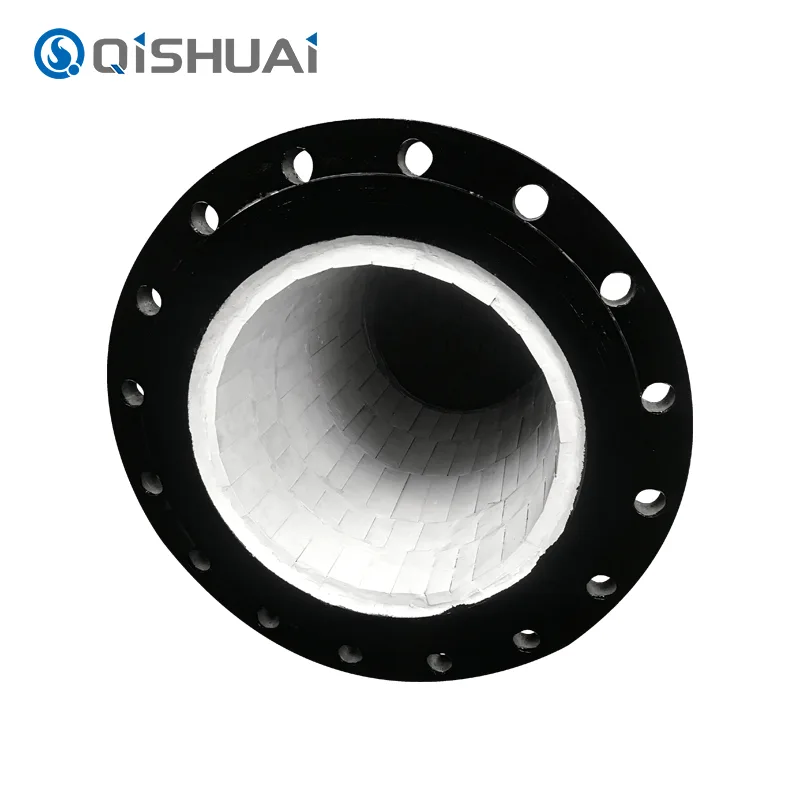

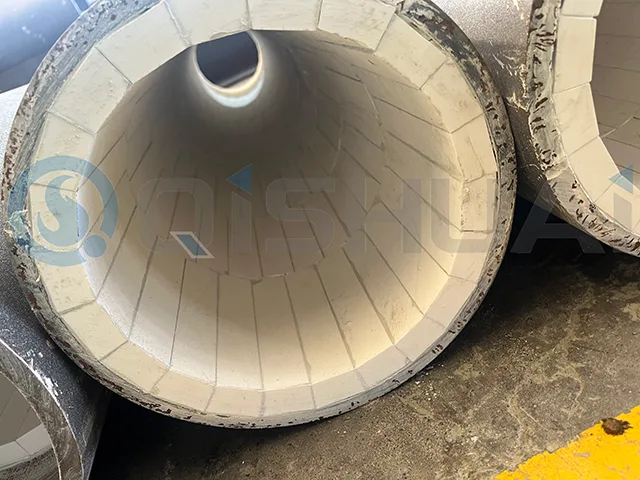

In the industrial piping, the industrial piping Alumina Ceramic Lined Tubes manufactured by Shandong Qishuai Wear-Resistant Equipment Co., Ltd. is an important material with excellent performance. The product can solve the general problems of wear and corrosion of industrial piping in all kinds of industrial enterprises, and give you the assurance for your stable industrial production, and it is the first option for the enterprises to purchase the materials of industrial piping.
Companies with industrial piping materials requirements are welcome to buy our Shandong Qishuai Wear-Resistant Equipment Co., Ltd. industrial piping Alumina Ceramic Lined Tubes, and you will get the assurance for your production and the service life of equipment.
High hardness
High corrosion resistance
High-temperature stability
Low thermal conductivity
|
Comparative Project |
Alumina Ceramic Lined Tubes |
Traditional steel pipes |
Traditional plastic pipes |
|
Abrasion resistance |
Extremely high, several times or even dozens of times that of traditional steel pipes. |
Generally, prone to wear and tear |
Poor, not wear-resistant |
|
Corrosion resistance |
Resistant to a wide range of corrosive media, including strong acids and alkalis. |
Prone to corrosion, particularly in acidic or alkaline environments. |
Some materials resist common acids and alkalis, but are prone to ageing in strongly oxidising environments. |
|
Maintenance costs |
Low, with significantly reduced maintenance and replacement frequency |
High, requiring frequent maintenance and replacement |
Relatively high, with a comparatively short lifespan and high replacement costs. |
|
Adaptability |
Available in customisable specifications and dimensions to accommodate diverse complex operating conditions. |
Specifications are relatively fixed, with limited adaptability. |
Limited size specifications make it difficult to accommodate special requirements. |
|
Mechanical strength |
High, capable of withstanding significant pressure and impact forces |
Relatively high, but prone to fatigue under prolonged stress |
Lower, insufficient tensile strength and compressive strength |
Petrochemical Industry
In the petrochemical industry, it have been essential to guarantee the safe and reliable operation of the production processes for they are just performing remarkably well. Used in the crude oil transmission pipelines, they can prevent successfully the corrosion and abrasion induced by impurities and salts in the crude and thus guarantee the secure and reliable long distance transportation of the crude. There are certain differences in the advantages brought by Alumina Ceramic Lined Tubes to the refinery equipment like distillation columns and reactors and chemical synthesis reactions.
Power Industry
Many characteristics of the power industry place extremely demanding requirements on the performance of pipeline material. In coal-fired power stations, the high temperature flue gases produced by the boiler contain high levels of undesirable substances such as dust and sulphides which result in intense abrasion and corrosion of pipelines. The extremely high hardness and corrosion resistance properties of it make them the natural first choice for boiler exhaust ductwork. They significantly reduce pipeline abrasion and corrosion, extending service life and lowering life cycle costs.
Mining and Metallurgy
In the mining and metallurgy industries, pipelines are mainly used for the transportation of ore, slurry and high-temperature slag. These materials all have the characters of high hardness, big particle size and strong corrosivity. The wear resistance of it en surpasses all, it can be widely used in the transportation of these materials with less wear of pipeline, higher production efficiency and less cost.
To meet the diverse requirements of our clientele, we offer Alumina Ceramic Lined Tubesin multiple specifications. The detailed parameters are outlined in the table below:
|
item |
Parameter Details |
|
Pipe diameter |
25mm - 1200mm (larger or smaller diameters available upon request) |
|
Wall thickness |
Ceramic lining thickness: 3mm - 20mm; Steel pipe wall thickness: 4mm - 20mm |
|
Length
|
Standard lengths are 3m and 6m, though custom lengths can be produced to meet customer requirements, with a maximum custom length of 12m. |
|
work pressure |
0.6MPa - 25MPa, with the specific working pressure determined by factors such as pipe diameter, wall thickness and material. |
|
Operating temperature |
-50°C to 1600°C (can withstand temperatures up to 1800°C for short periods) |
|
Connection method |
Flange connections, welded connections, quick-connect couplings, etc., may be selected according to customer requirements. |
|
Alumina content |
The alumina content in ceramic linings is ≥95%, with some premium products achieving over 99%. |
|
Hardness of ceramic lining |
Mohs hardness ≥ 9 |
|
Abrasion resistance |
Wear resistance is 5 to 20 times that of ordinary steel pipes (depending on specific operating conditions and materials). |
|
Corrosion resistance |
exhibits excellent corrosion resistance to a wide range of chemical media including acids, alkalis, and salts |
