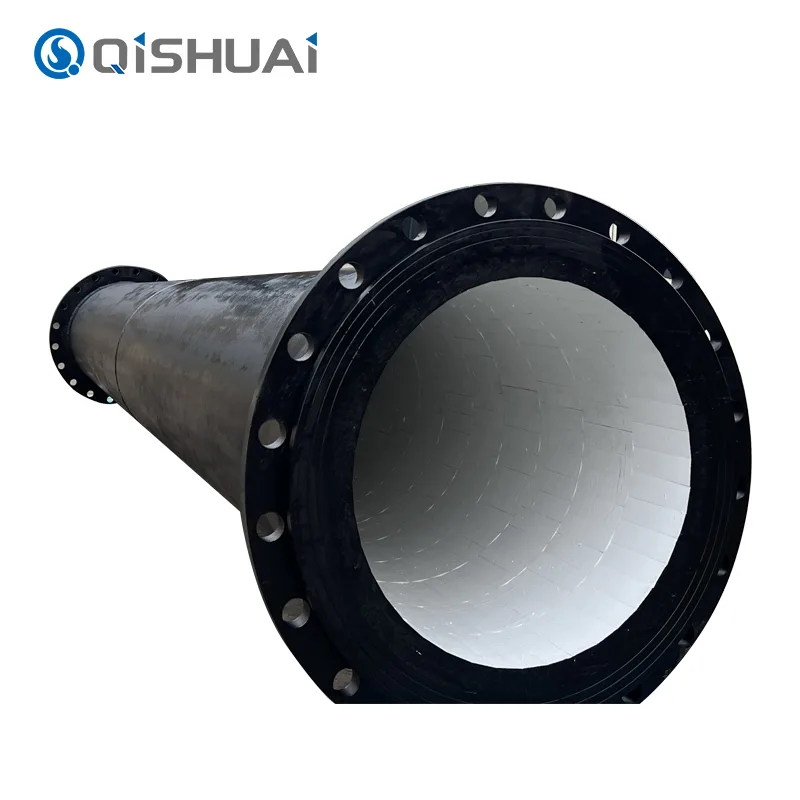

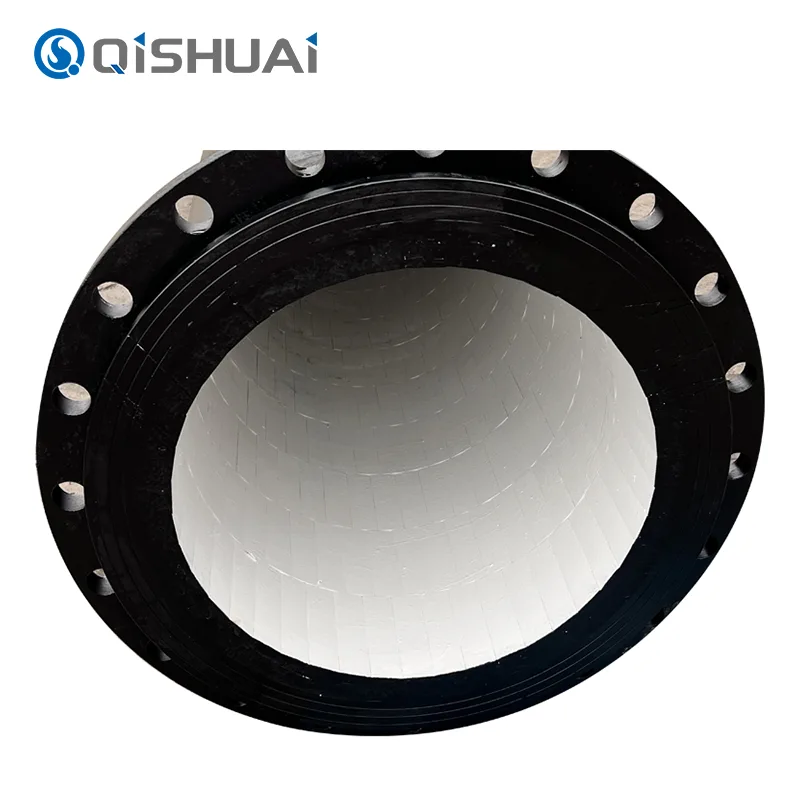

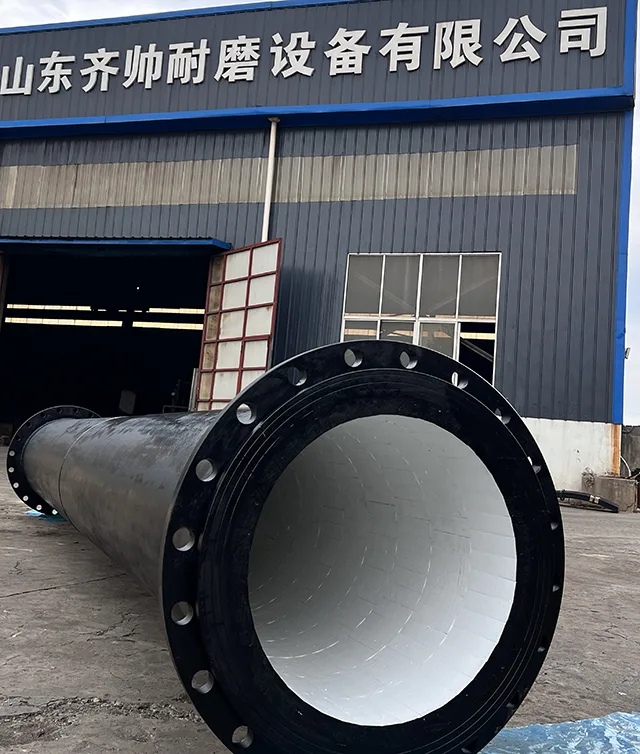

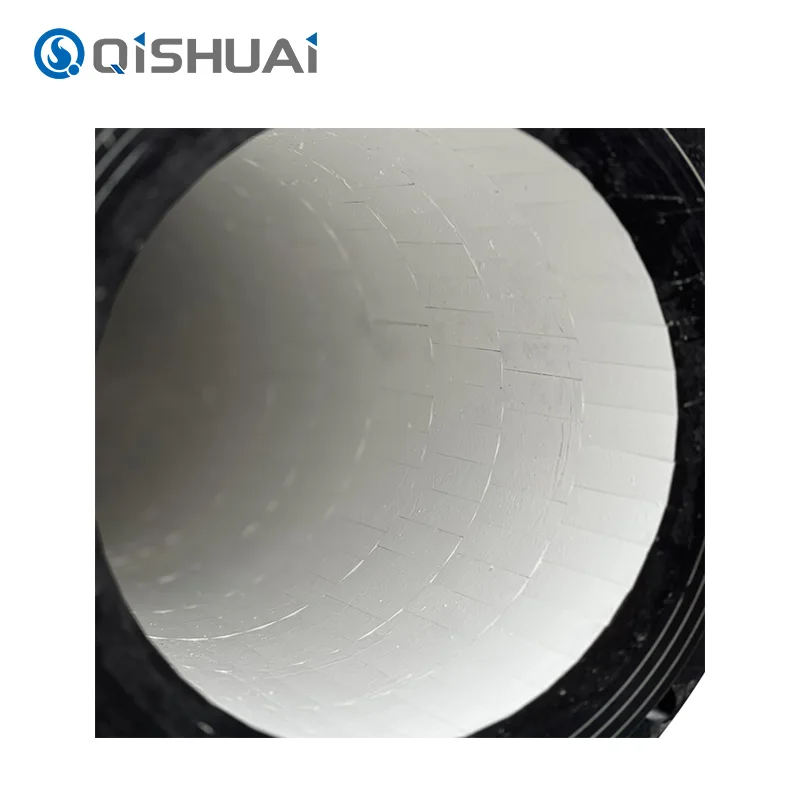

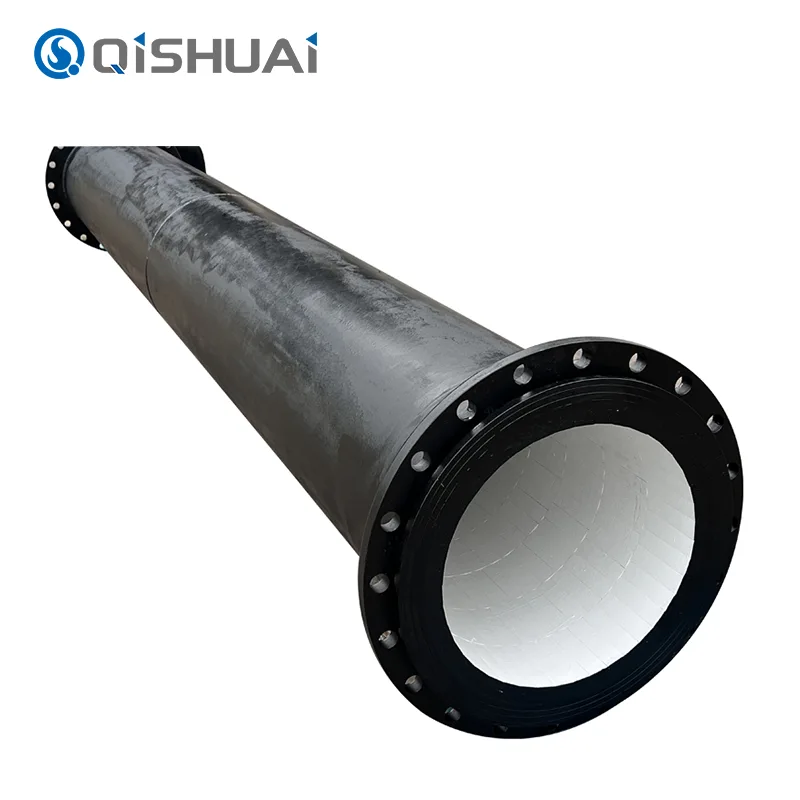

Alumina Ceramic Pipe

Alumina Ceramic Pipe from Shandong Qishuai Wear Resistant Equipment Co., Ltd. uses high-purity alumina as raw material, the alumina content of which is above 99%. The 1% is addutives of yttrium oxide, which is used to stabilize the crystal and obtain satisfactory high temperature performance and mechanical performance of ceramic. In ceramic products, the purity and application ratio of alumina has great influence to the product performance. The higher the alumina ceramic purity, the higher dielectric constant and the lower dielectric loss.

Product Parameter Table

To help you clearly understand the key performance of our products here is a detailed parameter table:

Comparison with Ordinary Metal Pipes

The following table provides an intuitive comparison of the performance between our products  and ordinary metal pipes:

Wide Application Fields

Thanks to its outstanding performance, it has a wide range of key applications in numerous industries, providing strong support for the efficient and stable production of various sectors.

Chemical Industry

In chemical production, it often involves the transportation and reaction processes of various strong acids, strong alkalis and corrosive chemical substances. The super-strong corrosion resistance of Alumina Ceramic Pipe makes it an ideal choice for chemical pipeline systems. After using our products the pipeline maintenance cost of chemical enterprises can be reduced by about 50% - 70%.

Metallurgical Industry

In the metallurgical process, whether it is blast furnace ironmaking, non-ferrous metal smelting or slag transportation, it faces harsh working conditions of high temperature, strong corrosion and high wear. In blast furnace coal injection pipelines, coal powder scours the inner wall of the pipeline at high speed and also endures high temperature, which ordinary metal pipelines are difficult to meet. The high-temperature resistance of our products enables it to work stably at 1600℃, and its high hardness and wear resistance allow it to resist the high-speed scouring of coal powder, greatly improving the service life of the pipeline.

Mining Industry

In the mining industry, the mining, transportation and processing of ore will cause serious wear to equipment and pipelines. In mine tailings transportation pipelines, tailings usually contain a large number of hard particles, which cause great wear to the pipelines. Traditional metal pipelines have a short service life under such high-wear working conditions and need to be replaced frequently, increasing the operating cost of mines. The wear resistance of Alumina Ceramic Pipe is 266 times that of manganese steel and 171.5 times that of high-chromium cast iron, which can effectively resist the wear of tailings, and its service life can be more than 10 times that of traditional metal pipes. This not only reduces the number of pipeline replacements, lowers maintenance costs, but also improves the production efficiency of mines and ensures the continuous and stable production of mines.

Environmental Protection Industry

In the field of environmental protection, our products is widely used in waste gas treatment and waste water treatment.

In waste gas treatment, there is high temperature flue gas from waste incineration power generation. The high temperature flue gas contains a large amount of acid gas and dust. Requirements for anti-corrosion performance and wear resistance of pipeline are very high. It can resister the corrosion of high temperature sulfur containing gas. Porous our products can also be used as catalyst carrier to enhance the effectiveness of waste gas treatment.

In waste water treatment, our products can also be used to treat waste water with acid and alkali. Its anti-corrosion performance makes it to be able to operate smoothly in the waste water with complex quality. In addition, Alumina Ceramic Pipe does not easily adsorb impurities on its smooth surface, which can avoid blockage of pipeline and improve the effectiveness of waste water treatment.
