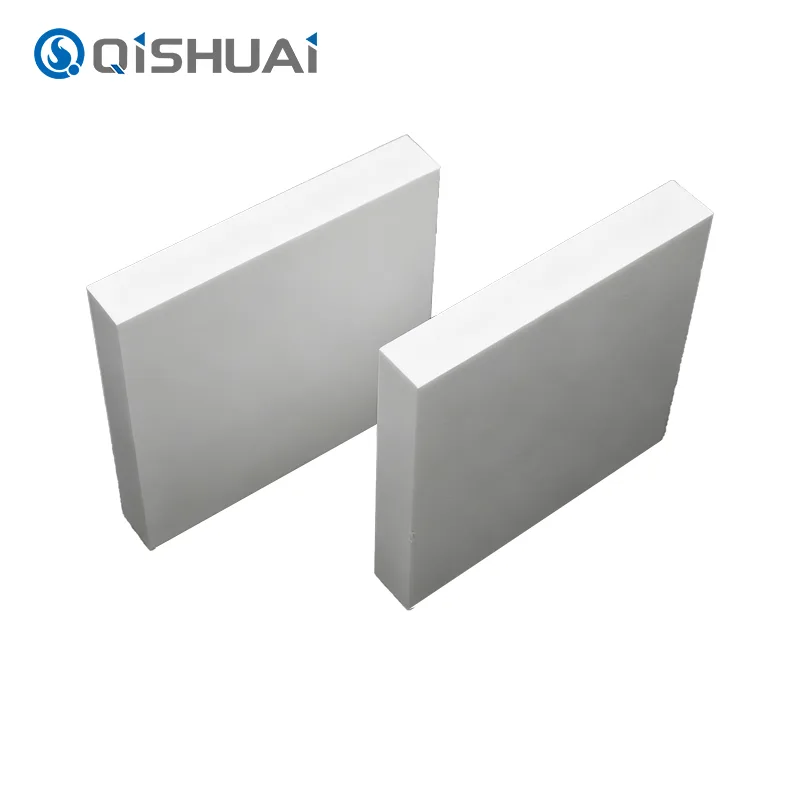

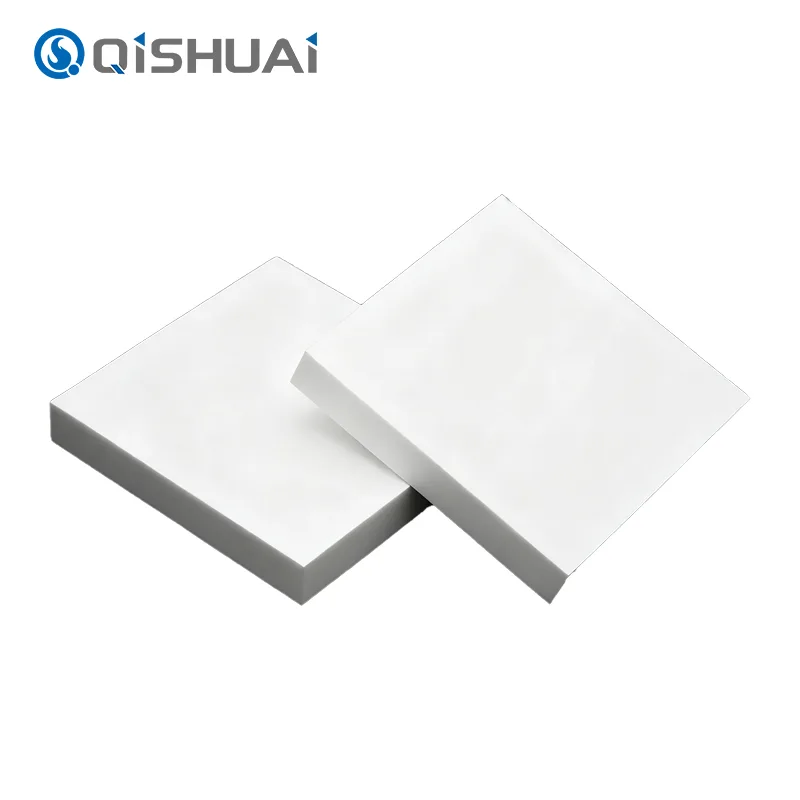

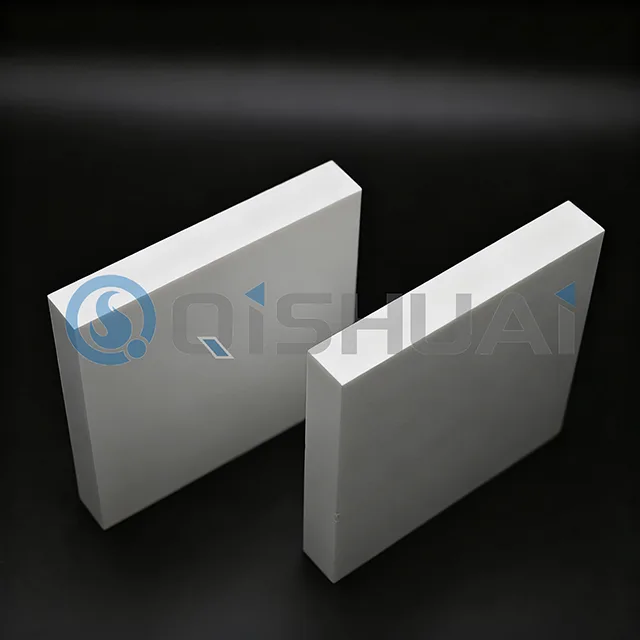

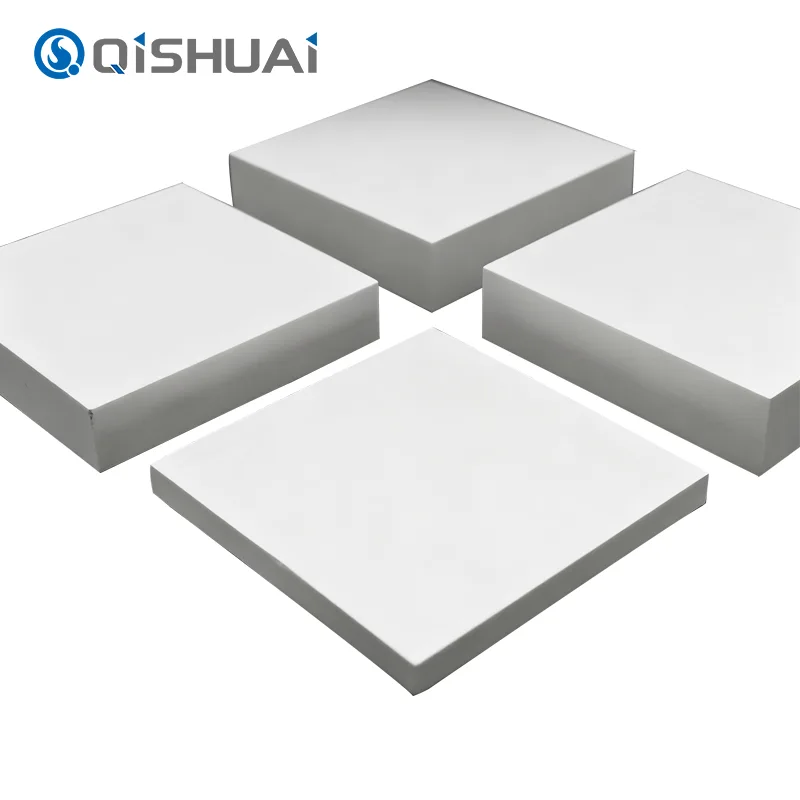

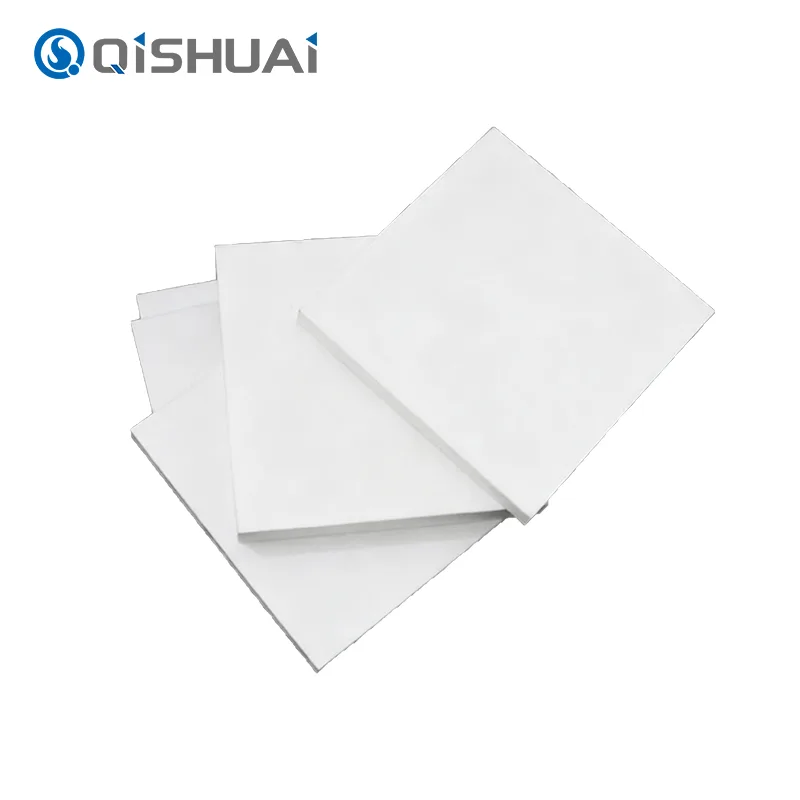

Al2O3 Ceramic Wear Resistant Tiles have a vital role in a wide range of industrial fields owing to its extraordinary performance. They are the perfect solutions to the problems induced by equipments’ wearing and give you the reliable guarantee for the steady operation and full production of various industries.
High Hardness, Resistant to Acid and Alkali Corrosion, Resistant to High Temperature.
|
Performance |
Parameters |
|
Hardness |
Mohs hardness of approximately 9 |
|
Abrasion resistance |
Compared to ordinary carbon steel, wear resistance is enhanced by several to dozens of times. |
|
Chemical stability |
High tolerance to corrosive media such as acids and alkalis |
|
High-temperature resistance |
Capable of stable operation at temperatures of 1600°C and above |
Metallurgical Industry: They are used as furnace lining material. The product can resists high temperature, will not soften or deform at high temperature. The excellent chemical stability can resist the erosion of slag, extend the life of blast furnace for a long time. In addition, high-temperature molten metal also causes very great abrasion to the inner surface of the pipeline. If the inner surface is lined with Al2O3 Ceramic Wear Resistant Tiles, the abrasion will be prevented and the conveyance of the metal conveyance pipeline can be guaranteed.
Power Industry: In the coal mill of coal fired power station, the coal is pulverised by the inner surface of the equipment during the process of coal pulverising. The abrasion caused by the high speed rotation of equipment components reduces the service life of the lining of conventional coal mills greatly, and causes frequent maintenance. While, if they are used as lining, the abrasion is greatly weakened. The hardness of Al2O3 Ceramic Wear Resistant Tiles can resists abrasion of coal particles. The wear resistance is several to dozens of times that of ordinary carbon steel. The equipment wear is greatly reduced. The maintenance cost and equipment downtime are reduced and the power generation efficiency is improved.
Cement Industry: In the cement mill, the abrasion caused by abrasion of the inner wall of the mill body and abrasion of grinding components are very serious. Lining plates and grinding media fabricated from Al2O3 Ceramic Wear Resistant Tiles can greatly improve the wear resistance of cement mill, reduce the frequency of maintenance and reduce the cost. According to the feedback from customers of Shandong Qishuai Wear-Resistant Equipment Co., Ltd., the maintenance times of the equipment of cement plant using Al2O3 Ceramic Wear Resistant Tiles is reduced by 30%–40%. The equipment service life is extended by 2–3 times, and then the production efficiency of cement plant is improved, and the cost of operation of cement enterprise is reduced.
To give you a more intuitive and comprehensive understanding of the indicators used in the performance of Al2O3 Ceramic Wear Resistant Tiles, we have compiled the specification parameter table below.
|
Items |
Parameters |
|
Dimensions |
Standard dimensions include 100mm × 100mm × 10mm, 150mm × 150mm × 15mm, and 200mm × 200mm × 20mm, among others. Custom dimensions may also be produced to meet specific client requirements. |
|
Hardness |
Mohs hardness approximately 9, Vickers hardness HV 1500–1800 (slight variations depending on purity and manufacturing process) |
|
density |
3.6–3.9 g/cm³(high-purity products approach a density of 3.9 g/cm³) |
|
Compressive strength |
≥850 MPa (with certain high-performance products exceeding 1000 MPa) |
|
Flexural strength |
≥290MPa |
|
Chemical stability |
It exhibits excellent resistance to most acidic, alkaline, and saline solutions, with an extremely low corrosion rate in common chemical media that is virtually negligible. |
|
High-temperature resistance range |
The material can withstand temperatures up to 1600°C during prolonged use and can endure even higher temperatures for short periods. |
|
Coefficient of thermal expansion |
7.2×10⁻⁶/℃（25 - 1000℃） |
|
Thermal conductivity |
20–30 W/(m·K) (slight variations depending on purity and manufacturing process) |
|
Alumina content |
≥95% (high-purity products may reach 99% or higher) |
|
Abrasion resistance |
Wear rate≤0.01 g/cm²(under specified wear test conditions). Compared to ordinary carbon steel, wear resistance lifespan is extended by 5 to 10 times. Compared to typical wear-resistant alloy steels, wear resistance lifespan is extended by 3 to 5 times. |
