Shandong Qishuai's In-Depth Analysis: Selection Guide for Chromium Carbide Overlay Pipes and Alumina Ceramic Lined Pipes, Suitable for High-Abrasion Conditions Across All Industries

In industrial sectors such as mining, metallurgy, thermal power generation, and cement construction materials, wear-resistant piping serves as the ‘lifeline’ for material conveyance. Its appropriate selection directly determines production efficiency, operational costs, and equipment lifespan. Faced with diverse wear-resistant pipe types on the market, numerous enterprises often encounter difficulties when procuring clad wear-resistant pipes or ceramic-composite wear-resistant pipes, grappling with challenges such as ‘uncertainty in matching operating conditions’ and ‘incorrect product selection leading to unnecessary cost increases’. As a manufacturer with 16 years of specialised expertise in wear-resistant equipment, Shandong Qishuai Wear-Resistant Equipment Co., Ltd. leverages its extensive production experience and customised solution capabilities to comprehensively analyse the core differences, suitable operating conditions, and product advantages of overlay-welded wear-resistant pipes and ceramic-composite wear-resistant pipes. Concurrently, the company presents its full range of wear-resistant products to assist clients across industries in precise selection, efficient procurement, avoiding selection pitfalls, and reducing long-term operational costs.

Strength in Foundation: Shandong Qishuai, Your One-Stop Wear-Resistant Solutions Provider

Shandong Qishuai is a specialist provider of wear-resistant products and technical solutions, integrating design, manufacturing, and installation services. With years of dedicated expertise in the wear-resistant sector, the company has established a strong reputation within China's wear-resistant equipment industry through its diversified product portfolio, advanced production processes, and stringent quality control standards. Its products serve markets across all provinces and municipalities in China, while also being exported to over a dozen countries and regions worldwide. Qishuai has cultivated a substantial base of stable strategic partners across industries including mining, steel smelting, thermal power generation, petrochemicals, and cement construction materials.

Shandong Qishuai's core competitiveness stems from three key strengths, providing comprehensive assurance for clients procuring wear-resistant products:

• Full industrial chain capability: From raw material sourcing and core component production to finished product inspection and on-site installation, we maintain end-to-end control over the entire process. This ensures effective management of product quality and delivery timelines while reducing intermediary costs, passing savings on to procurement clients.

• Customised Technical Capabilities: Our dedicated R&D and technical teams develop bespoke wear-resistant piping and component solutions tailored to specific operational conditions, conveyed media, pressure, and temperature requirements. This addresses complex wear challenges and eliminates the common frustration of ‘generic products failing to fit’.

• Rigorous Quality Control and Comprehensive After-Sales Support: We maintain a full-process quality inspection system with traceable raw material sourcing. Multiple quality control checkpoints during production ensure product compliance rates, delivering worry-free procurement for clients.

Leveraging robust corporate strength, Shandong Qishuai has developed a diversified product portfolio centred on: Chromium Carbide Overlay, Alumina Ceramic, Ceramic Rubber Composite Plates, Composite Wear Pipe and Silicon Carbide Ceramic. This comprehensive range meets diverse wear-resistance requirements across industries and operating conditions, establishing us as a reliable one-stop supplier for wear-resistant products.

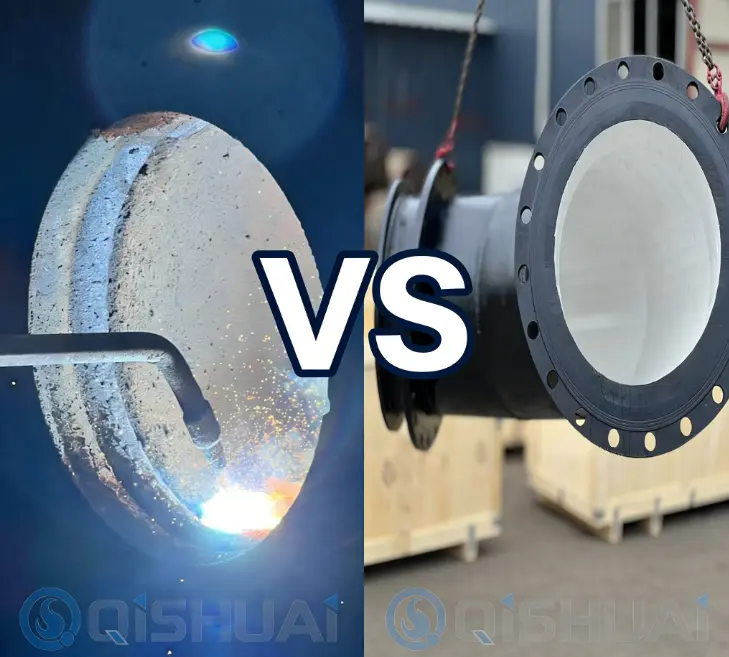

Core Analysis:Chromium Carbide Overlay Pipes vs Alumina Ceramic Lined Pipes – Dual Comparison of Operational Suitability and Core Advantages

In the procurement of industrial wear-resistant piping, overlay-welded wear-resistant pipes and ceramic-composite wear-resistant pipes represent the two most widely utilised categories. However, these two types exhibit significant differences in material composition, manufacturing processes, and performance characteristics, with distinct operational conditions for which they are best suited. Drawing upon years of industry expertise, Shandong Qishuai provides a comprehensive analysis across three key dimensions—material composition and manufacturing techniques, core advantages, and suitable operational conditions—to assist in precise selection.

I.Chromium Carbide Overlay Pipes: High toughness + exceptional abrasion resistance, suitable for complex operating conditions involving high impact and severe wear.

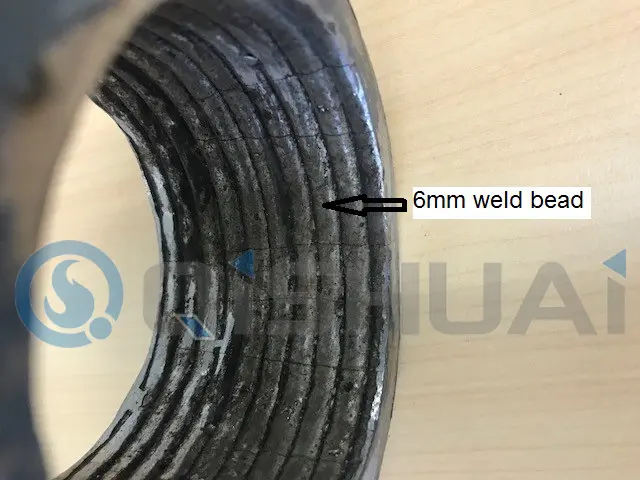

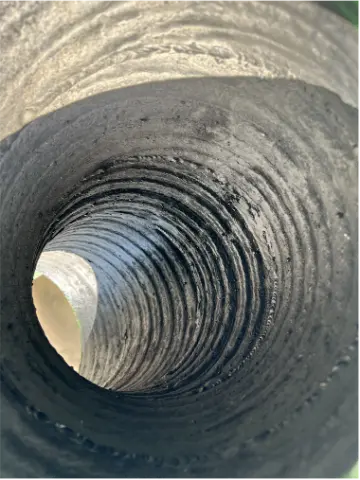

Shandong QishuaiChromium Carbide Overlay Pipes utilise high-quality base materials. Through automated overlay welding processes, a chromium carbide alloy wear-resistant layer is applied to the pipe's inner wall, forming a dual-structure design where the base material bears the load while the wear layer resists abrasion. This combination delivers both the base material's toughness and the wear layer's exceptional abrasion resistance, making it the preferred solution for high-impact and severe wear conditions.

Core Processes and Product Advantages

1. Exceptional wear resistance: The overlay layer utilises chromium carbide alloy material, achieving a Rockwell hardness of HRC58-65. Its wear resistance surpasses that of ordinary steel pipes and high-manganese steel, effectively withstanding abrasion from high-hardness materials and extending pipeline service life;

2. Good toughness and strong impact resistance: The base material utilises high-strength steel, offering excellent toughness and impact resistance. It can withstand material impacts (such as conveying large ore chunks or coal lumps) without prone to pipe fractures or ruptures, thereby reducing unplanned downtime caused by pipeline damage.

3. High-temperature and corrosion resistance: Withstands operating temperatures of 300–800°C while resisting corrosion from moderately concentrated acidic or alkaline media, making it suitable for high-temperature material conveyance applications;

4. Flexible connection methods and strong adaptability: Supports diverse connection techniques including welding and flanging, enabling seamless integration with existing customer conveying systems without extensive equipment modifications, thereby reducing installation costs;

5. Low lifecycle cost: Whilst the initial procurement cost exceeds that of standard steel pipes, its service life is 8-12 times longer. This substantially reduces replacement frequency and manual maintenance expenses, yielding long-term operational savings exceeding 40% for customers.

Suitable operating conditions (precisely matched to prevent selection errors)

Shandong QishuaiChromium Carbide Overlay Pipes are primarily suited for complex operating conditions involving high impact, severe abrasion, and medium-to-high temperatures. Core application scenarios include:

• Mining: Tailings conveyance, concentrate transport, and backfill material handling in iron ore, copper ore, and other mines; supporting piping for vibrating chutes, hydrocyclones, and similar equipment;

• Metallurgy: Conveyance of steel slag and iron slag; transport of metallurgical furnace feedstock; high-temperature flue gas ducting;

• Cement and building materials: clinker conveyance, limestone powder transport, fly ash handling, etc.;

• Other sectors: coal conveyance, port bulk material handling, construction waste transport, and other high-impact applications.

Procurement Advisory: Where your operational conditions involve impact from large-sized materials, high-velocity erosion, or medium-to-high temperature environments, prioritise the selection of Shandong Qishuai overlay-welded wear-resistant pipes. This will effectively minimise the need for frequent pipe replacements and reduce downtime losses.

II. Alumina Ceramic Lined Pipes: High hardness + low friction, suitable for high-wear and corrosive operating conditions.

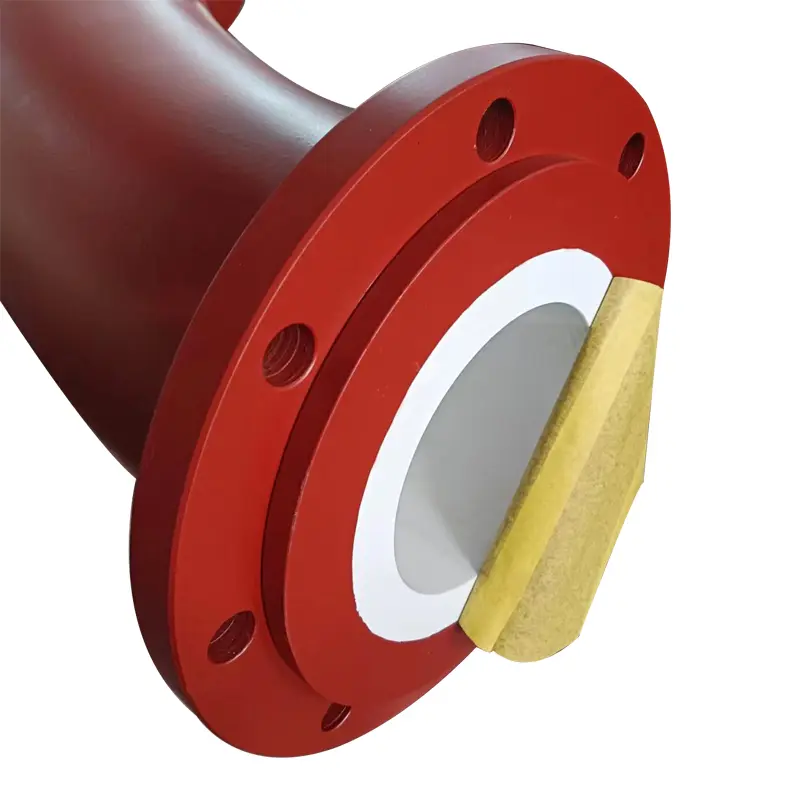

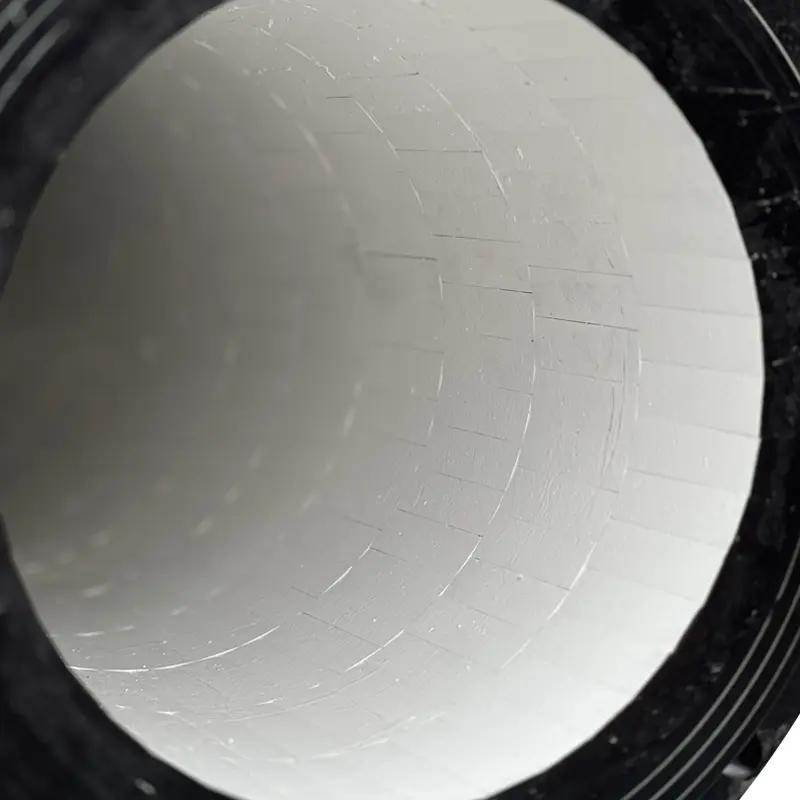

Shandong Qishuai Alumina Ceramic Lined Pipes employ a composite structure of ‘metal substrate + ceramic lining’. The outer layer of steel pipe provides pressure resistance and toughness, while the inner layer consists of high-purity alumina ceramic or silicon carbide ceramic. Through processes such as centrifugal casting and tile bonding, a metallurgical bond is achieved, yielding a Mohs hardness of up to 9 (equivalent to HRA 80-90). offering exceptional hardness that makes it an excellent choice for high-wear and corrosive environments. It also stands as one of the core products within Shandong Qishuai's composite pipe series.

Core Processes and Product Advantages

1. Superior wear resistance: The ceramic lining possesses high hardness, offering better wear resistance than ordinary steel pipes and high-chromium cast iron. It is suitable for the long-term conveyance of fine-grained, high-velocity materials with a low wear rate;

2. Superior corrosion and high-temperature resistance: Ceramic materials exhibit strong chemical inertia, withstanding corrosion from strong acids and alkalis (excluding strong alkalis and hydrofluoric acid). They maintain long-term service temperatures of 350–600°C, while certain silicon carbide ceramic composite pipes endure temperatures exceeding 1000°C. This makes them suitable for corrosive and high-temperature conditions in chemical processing and thermal power generation;

3. Smooth inner surface for energy savings: The ceramic lining features a smooth surface (Ra ≤ 0.8μm) with low friction coefficients, reducing material conveyance resistance and lowering pump energy consumption. Field tests indicate energy savings of 8%-15%. Additionally, it minimises material accumulation and blockages, reducing maintenance costs;

4. Lightweight and easy to install: Compared to overlay-welded wear-resistant pipes of the same specification, Alumina Ceramic Lined Pipes are lighter, reducing installation complexity and hoisting costs. They are particularly suitable for installations at height or in complex terrain;

5. High bonding strength, resistant to detachment: Utilising advanced composite technology, the bonding strength between the ceramic lining and metal substrate is ≥15MPa. This prevents ceramic detachment during prolonged use, ensuring operational stability.

Suitable Operating Conditions (Precise Matching to Avoid Selection Errors)

Shandong Qishuai Alumina Ceramic Lined Pipes are primarily suited for high-wear, corrosive, and medium-to-high temperature environments. Core application scenarios include:

• Thermal Power Industry: Pulverised coal conveyance, fly ash transport, desulphurisation slurry transfer, high-temperature flue gas ducting, etc.;

• Petrochemicals: Chemical slurry and acid/alkali solution conveyance, high-temperature reactor piping systems;

• Mining: Fine-particle ore slurry conveyance, flotation agent transport and other corrosive applications;

• Other: Material handling in pharmaceutical and food processing industries (impurity-free, compliant with sanitary standards), alongside wastewater treatment and environmental desulphurisation scenarios.Procurement Note: Should your operational conditions primarily involve high-velocity erosion by fine particulates and the conveyance of corrosive media, prioritise Shandong Qishuai ceramic-composite wear-resistant pipes. These offer a superior balance of abrasion resistance, corrosion protection and energy efficiency, delivering enhanced value for money.

Summary Table of Core Differences BetweenChromium Carbide Overlay Pipes and Ceramic Composite Wear-Resistant Pipes

Full range coverage: Shandong Qishuai wear-resistant products, providing one-stop solutions for all industry requirements.

Beyond its core range of hardfacing wear-resistant pipes and ceramic-composite wear-resistant pipes, Shandong Qishuai leverages robust R&D and manufacturing capabilities to deliver a comprehensive wear-resistant product portfolio. This encompasses rubber-ceramic series, alumina series, composite pipe series, and silicon carbide ceramic series, catering to diverse wear-resistance requirements across various industries and applications. This enables customers to source all their needs from a single supplier.

Procurement Guide: Precise Selection, Efficient Procurement – Shandong Qishuai Safeguards Your Journey

The selection of industrial wear-resistant piping hinges on ‘aligning with operating conditions while balancing costs’ – choosing the right product can significantly reduce downtime losses and operational expenses, whereas selecting an unsuitable product not only wastes procurement funds but also disrupts production schedules. As a specialist wear-resistant solutions provider, Shandong Qishuai offers comprehensive procurement services:

1. Operating Condition Analysis: Our technical specialists precisely match your requirements with overlay-welded wear-resistant pipes, ceramic-composite wear-resistant pipes, or other product series based on your conveyed medium, flow velocity, pressure, temperature, and other operational parameters.

2. Customised Solutions: For complex operating conditions, we provide bespoke customisation services, optimising product structure and dimensions to ensure seamless integration with your production system.

3. Quality Assurance: Comprehensive quality control throughout the process, backed by third-party authoritative inspection reports, guarantees compliance with industry standards.

4. Installation & After-Sales: We provide on-site installation guidance and post-installation maintenance services, with 24-hour response to after-sales requirements, ensuring worry-free procurement.

Should you require procurement of overlay-welded wear-resistant pipes, ceramic-composite wear-resistant pipes, rubber-ceramic series products, alumina series products, composite pipe series products, or silicon carbide ceramic series products, or if you require professional selection guidance, please feel free to email us at any time. We shall provide you with bespoke solutions and the latest procurement quotations!
