How Should We Deploy Al2O3 Ceramic Wear Pipe for Blast Furnace PCI Pipeline Wear Control?

Shandong Qishuai Wear-Resistant Equipment Co., Ltd. supports custom wear-resistant pipeline solutions and helps metallurgical plants select and configure Al₂O₃ ceramic wear pipe for blast furnace pulverized coal injection pipelines facing persistent abrasion issues. Many metallurgy procurement teams underestimate targeted lining design, leading to frequent elbow thinning, powder leakage, and unplanned downtime on PCI conveying lines.

Blast furnace pulverized coal injection systems move fine coal powder at high speed through pipework. Even though coal fines are relatively soft, continuous particle impact and sliding friction gradually erode pipe walls. Bends, diameter reducers, and high-speed feeding sections are the most vulnerable spots. While our Al₂O₃ Ceramic Wear Pipe works well for these harsh operating conditions, lining performance depends on matching the structure to actual wear locations, rather than a one-size-fits-all installation approach. We also supply the chromium carbide overlay series, the ceramic rubber composite plate series, the alumina ceramic series, and the silicon carbide ceramic series for diversified industrial wear scenarios.

Where Does PCI Pipeline Wear Happen?

Abrasion does not spread evenly along the whole pipeline.

1. Elbows and bends: Coal particles keep moving forward due to inertia and pound the outer wall of the bend, creating concentrated impact wear. This is the most frequent failure area.

2. Reducers and transition segments: Changing pipe diameter disturbs airflow and particle distribution, triggering turbulence and localized abrasion.

3. Feed inlets and high-velocity runs: Higher particle speed raises collision frequency against the inner pipe surface.

Targeted Lining Design With Al₂O₃ Ceramic Wear Pipe

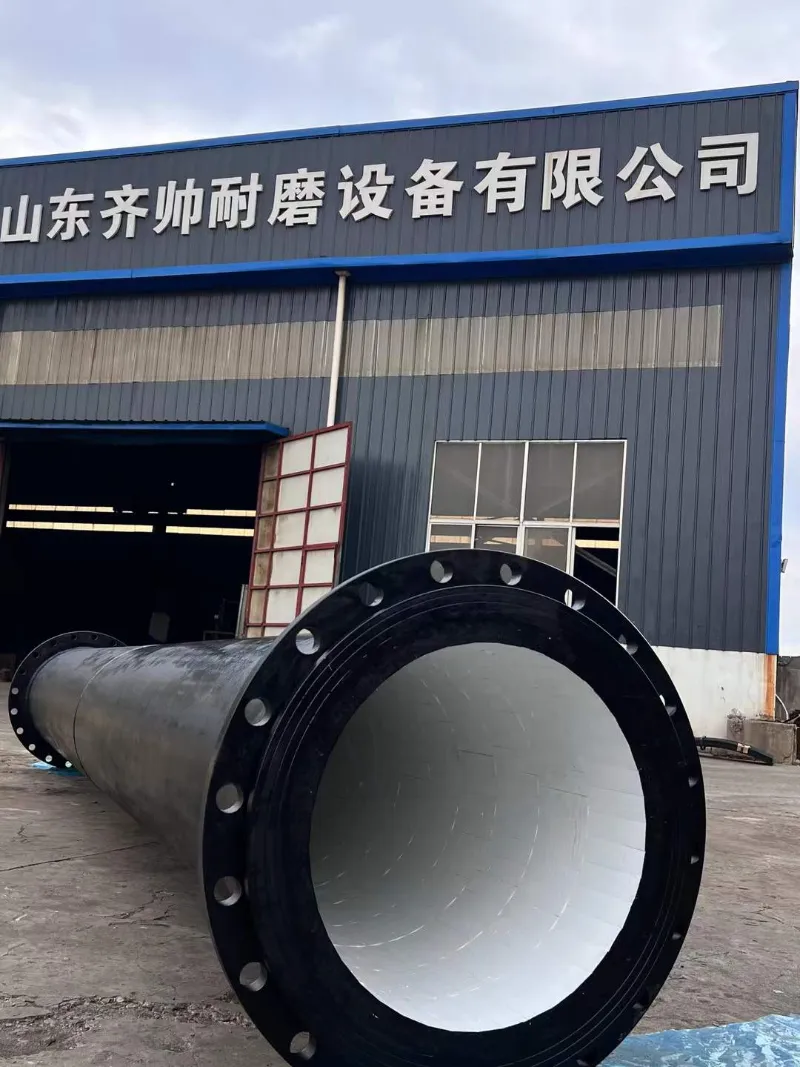

For straight conveying sections, Al2O3 Ceramic Wear Pipe delivers consistent sliding wear resistance and keeps smooth internal flow. It maintains stable performance under long-term fine powder transport.

For elbows under heavy particle impact, reinforced ceramic lining is recommended. Thickened ceramic tiles or ceramic-lined elbows can absorb impact loads. When shock forces are extreme, rubber ceramic composite structures can cushion blows and lower the risk of ceramic cracking.

For reducers and transition pieces, segmented ceramic lining is preferred. The design keeps streamlined flow paths and cuts turbulence that accelerates wear.

Material Selection Reference

· 92% alumina ceramic: Ideal for general pulverized coal conveying with moderate wear levels, balancing performance and project budget.

· 95% alumina ceramic: Fits continuous heavy-duty operation, offering better density and abrasion resistance for high-demand PCI lines.

· Ceramic rubber composite lining: Suitable for locations with strong mechanical shock and high particle velocity.

Additional Pipeline Optimization Tips

Ceramic lining is only one part of wear mitigation. You can extend service life by tuning conveying velocity, choosing large-radius bends, minimizing abrupt flow changes and strictly following proper surface preparation and bonding procedures during installation. Poor installation will shorten the service life even if you pick high-quality Al2O3 Ceramic Wear Pipe.

Ceramic lining cannot fully stop wear, but it can effectively slow down erosion and stretch maintenance intervals.

Final Notes

A reliable PCI wear protection scheme identifies wear hotspots first, then matches suitable lining structures. If you plan to source wear-resistant pipes or upgrade your existing blast furnace coal injection pipelines, feel free to send your working parameters via email for our engineering team to work out a tailored proposal.
