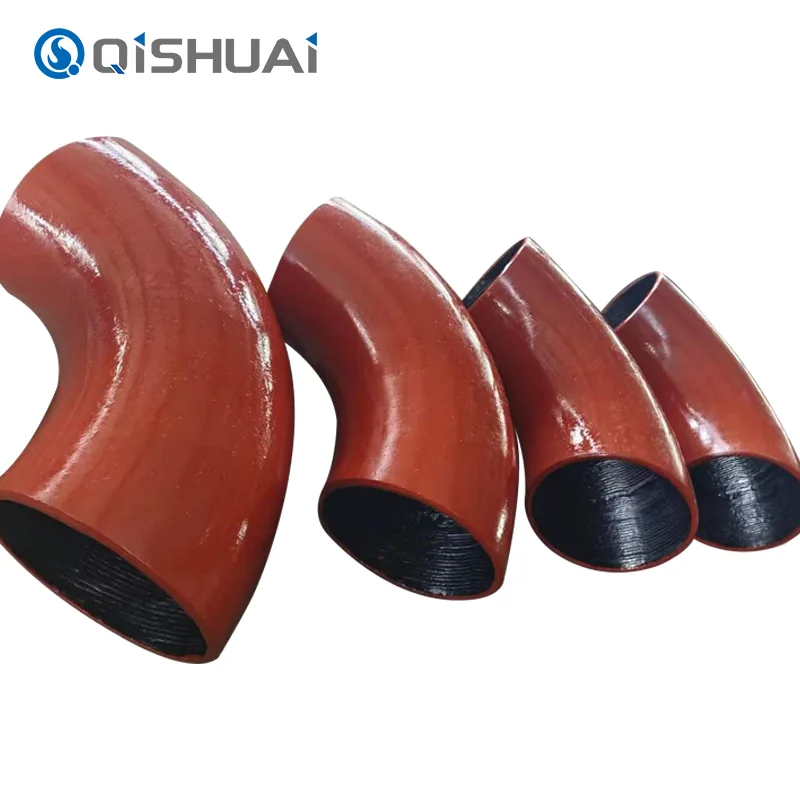

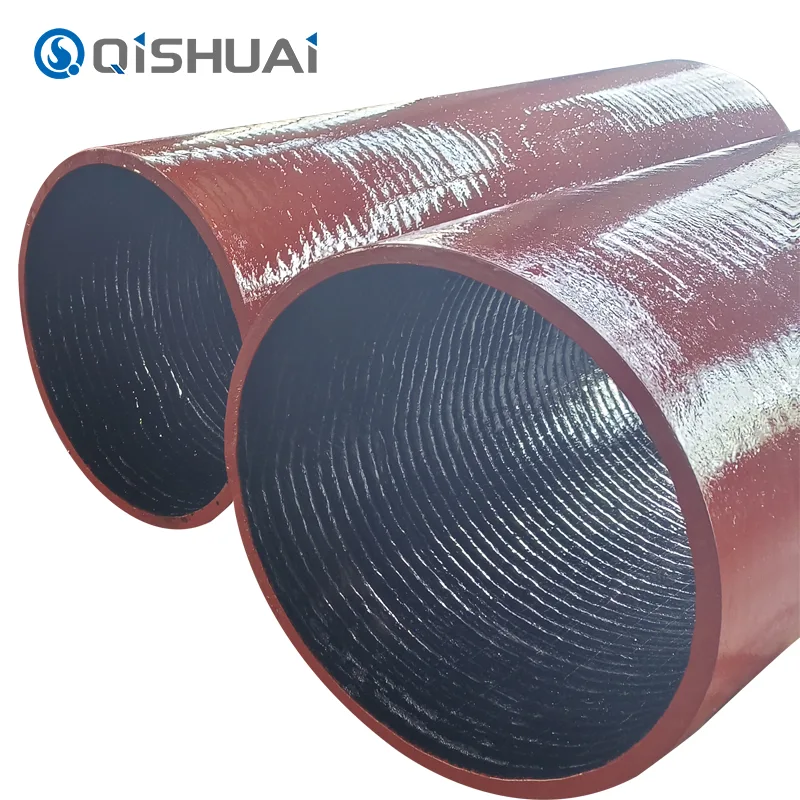

Chromium Carbide Hardfacing Pipe

Shandong Qishuai Wear-Resistant Equipment Co., Ltd. Chromium Carbide Hardfacing Pipe use high quality carbon steel or low alloy steel as the base metal. Advanced overlay welding process applies a uniform layer of high hardness chromium carbide alloy wear resistant coating on the inner surface of the pipe. This unique structural design combines the high strength and toughness of the base material with the exceptional wear resistance of the chromium carbide layer, making it an ideal choice for pipeline transportation in numerous high-abrasion conditions.

In mining operations, they transport slurries containing substantial sand and gravel particles; within the power industry, they serve as critical pipelines for coal transportation and ash removal systems; and in building materials production, they handle the conveyance of raw materials and clinker. With their outstanding performance, Chromium Carbide Hardfacing Pipe ensure stable production operations across various industries, providing robust support for industrial development.

Key Parameters and Characteristics

Production Processes and Quality Assurance - Quality Stems from Expert Manufacturing

Advanced Production Processes Explained

Shandong Qishuai Wear Resistant Equipment Co., Ltd. specializes in supplying customers with chrome carbide hardface overlay pipe. We are convinced that the perfect quality originates from the perfect production method and the strict control in each link of the production process. In the following content, let’s explore the production process of chrome carbide hardfacing overlay pipe.

Raw material screening: Choose high quality carbon steel or low-alloy steel as the hardfacing overlay pipe base material, the chemical composition and mechanical performance of carbon steel and low alloy steel meet the requirements. Meanwhile, the high purity chromium carbide alloy powder is chosen to make the subsequent overlay welds have a good performance. The raw materials have been inspected and qualified times are permitted to the next production link.

Surface pretreatment: The surface of the substrate pipe is shot blasting and sandblasting for cleaning the rust and oil contamination on the surface. According to the requirement, we could obtain certain roughness on the surface.

Overlay Welding Process Implementation: By using automated overlay welding equipments, we could apply efficient automated submerged arc overlay welding process or gas-shielded overlay welding process. During the overlay process, we strictly control the welding current, voltage and welding speed by the automatic control system. It could control the chromium carbide alloy overlay on the inner wall of the base pipe welding component uniformly and dense. It would form a wear-resistant layer on the inner wall of the base pipe and the automatic control system could guarantee the uniformity of the overlay welding layer and the stability of the performance.

Heat Treatment Process: After surfacing, we could apply certain kinds of heat treatment process on the pipeline according to the requirement. It could remove the stress on the surfacing layer. It could improve the microstructure and properties of the surfacing layer and enhance the hardness, wear resistance and corrosion resistance of the surfacing layer.

Dimension Machining and Straightening: According to the requirement of the customer, we could apply precise dimension machining on the overlay-welded pipe. It could guarantee the accuracy of the pipe inner diameter and pipe wall thickness.Concurrently, straightening processes are applied to guarantee that the pipes' straightness and roundness meet established standards.

Finished Product Inspection: Each chromium carbide hardfacing overlay pipe undergoes comprehensive and rigorous quality testing, covering multiple aspects including hardness testing, wear resistance testing, bond strength testing, corrosion resistance testing, visual inspection, and dimensional accuracy testing. Only products that fully pass these inspections are branded with the Shandong Qishuai logo and released to the market.

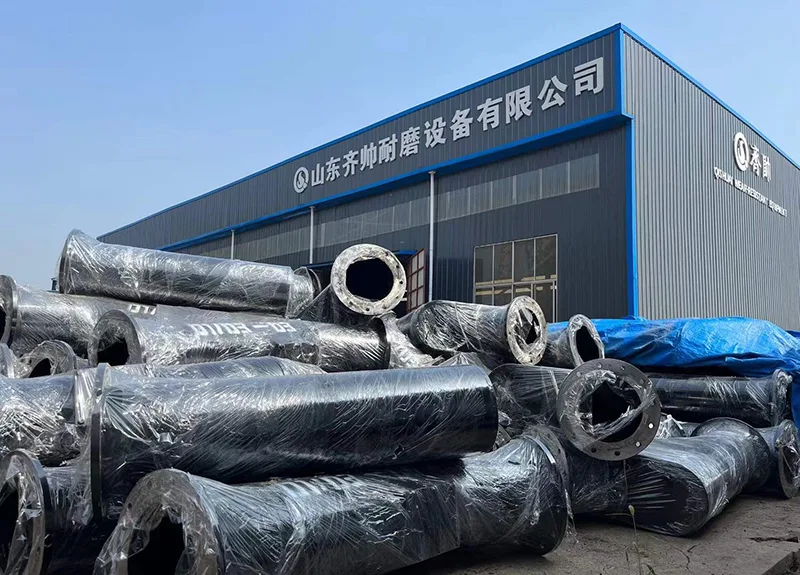

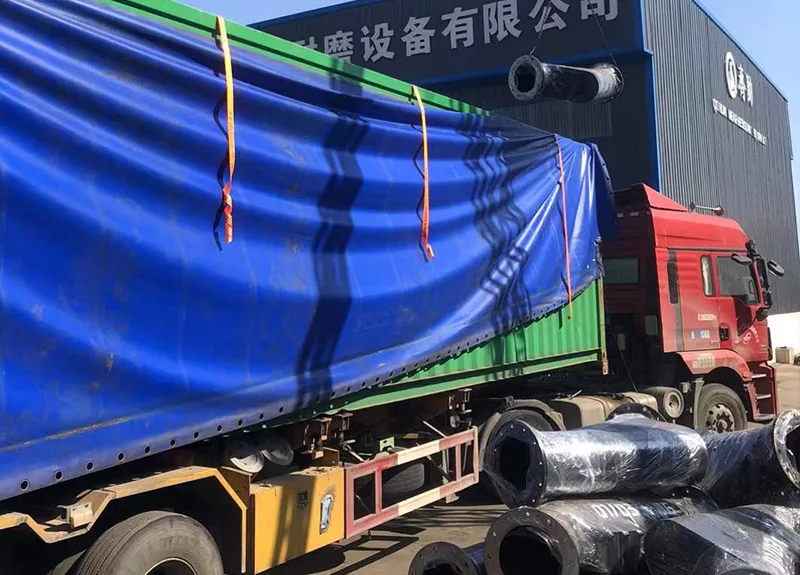

Shipment
