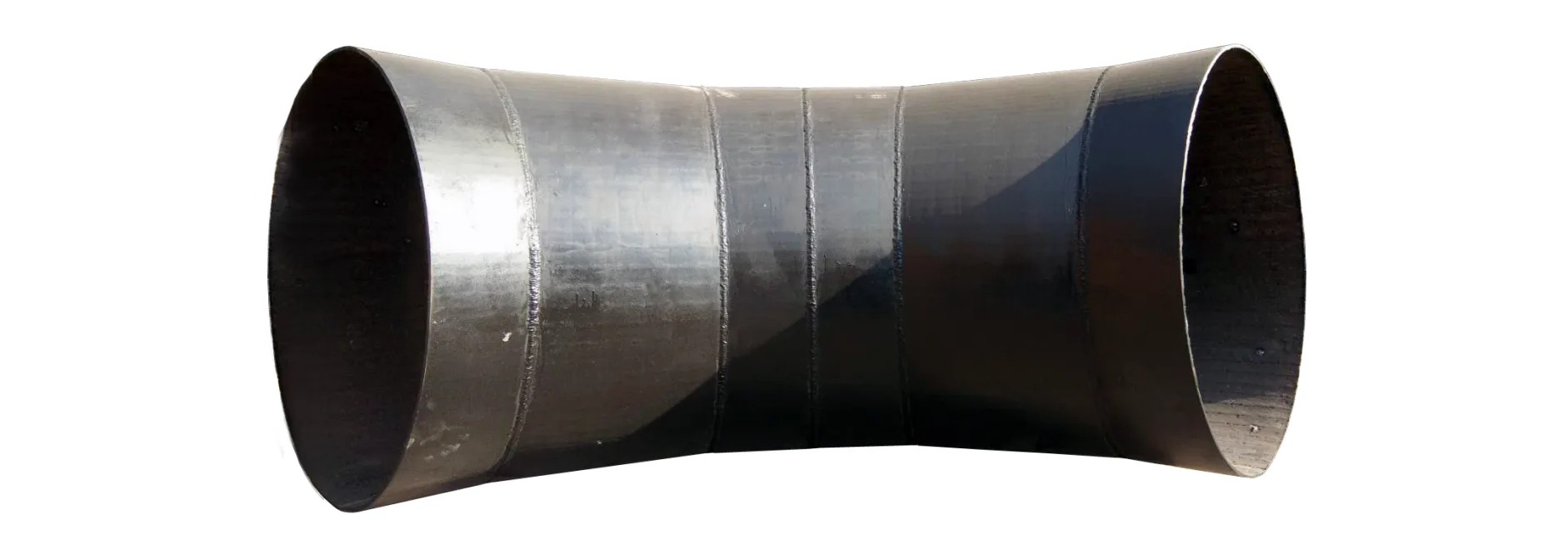

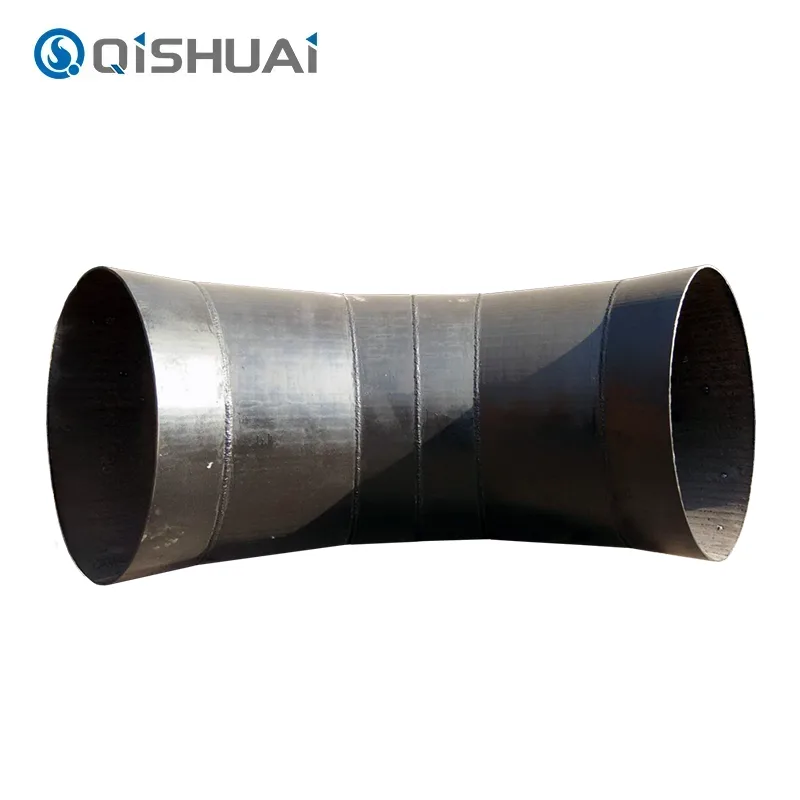

CCO Welding Pipe

CCO Welding Pipe (Chromium Carbide Overlay Welding Pipe) is a specialized wear-resistant pipe featuring a high-hardness chromium carbide (Cr3C2) alloy layer fused onto the inner or outer surface of a standard steel pipe using a surfacing (overlay welding) process. This metallurgically bonded wear-resistant layer possesses extremely high hardness (typically reaching HRC 55–65) and offers excellent resistance to abrasive wear and erosion. It serves as an ideal solution for conveying highly abrasive materials such as pulverized coal, mineral slurries, ash and slag, and cement. Shandong Qishuai Wear-Resistant Equipment Co., Ltd. specializes in the field of industrial wear protection, providing high-quality CCO wear-resistant pipes that meet the demands of rigorous operating conditions. By helping clients significantly reduce pipe replacement frequency and minimize downtime and maintenance costs, we stand as a reliable choice for the wear protection of industrial equipment.

Common Challenges and Our Solutions:

Challenge 1:

When conveying high-hardness, highly abrasive materials, standard steel pipes experience extremely rapid wear rates, leading to frequent perforations and leaks—resulting in production interruptions, material loss, and environmental pollution.

Our Solution: Our CCO wear-resistant pipes feature an overlay layer structured around a framework of high-hardness chromium carbide. With a hardness far exceeding that of standard steel, this layer effectively resists the cutting and gouging wear caused by sharp particles, extending the pipe's service life to 5–10 times—or even longer—than that of standard steel pipes.

Challenge 2:

Varying material impact angles cause severe erosive wear on specific pipe components—such as elbows and tees—which often become the weakest links in the entire conveying system.

Our Solution: We offer customized CCO wear-resistant fittings (including elbows, reducers, branch pipes, etc.) tailored to specific operating conditions. This ensures uniform coverage of the wear-resistant layer across high-wear areas, providing comprehensive protection and preventing system failure caused by premature localized wear.

Challenge 3:

Under harsh operating conditions (such as high temperatures or corrosive environments), the wear-resistant layer may suffer from spalling, cracking, or detachment from the substrate, thereby losing its protective efficacy.

Our Solution: We employ advanced automated hardfacing processes and rigorous process controls to ensure a robust metallurgical bond between the chromium carbide wear-resistant layer and the steel pipe substrate. This results in high bonding strength, as well as excellent resistance to impact and thermal fatigue, ensuring stable and reliable performance even under complex operating conditions.

Challenge 4:

Wear-resistant pipelines come in a wide variety of specifications; improper selection can lead to either over-investment or insufficient protection, necessitating professional technical support.

Our Solution: As a specialized supplier, we provide comprehensive support—ranging from operating condition analysis and solution design to product supply. Based on parameters such as your material characteristics, flow velocity, and temperature, we recommend the most cost-effective thickness, hardness, and specifications for the wear-resistant layer. We also provide detailed technical specifications and competitive quotations, with flexible Minimum Order Quantities (MOQ) that are open to negotiation.

Detailed Technical Parameters and Specifications

The following serves as a general framework for technical parameters. To obtain precise data and pricing, please provide specific requirements—such as material characteristics, pipe dimensions, operating pressure, and temperature—when submitting an inquiry.

Our Service Commitments

1. Technical Solution Support: We provide tailored wear-resistant solutions and product selection recommendations to ensure our products perfectly match your specific operating conditions.

2. Rapid Quotation Response: Within 48 hours of receiving your inquiry and technical specifications, we will provide a detailed commercial quotation, a parameter sheet, and an estimated delivery lead time (to be confirmed upon order placement).

3. Quality Assurance: We guarantee that the hardness, thickness, and bonding strength of the wear-resistant layer on our CCO (Chromium Carbide Overlay) pipes meet all requirements stipulated in the technical agreement.

4. Customized Manufacturing Capabilities: We support the customization of non-standard dimensions, special connection types (such as flanges or weld bevels), and wear-resistant pipe fittings to meet the diverse requirements of your projects.

FAQ

Q1: What are the advantages of CCO wear-resistant pipes compared to ceramic-lined pipes or bimetallic composite pipes?

A1: CCO pipes feature a metallurgical bond; consequently, their structural integrity and impact resistance are superior to those of adhesively bonded ceramic pipes. Compared to cast bimetallic pipes, CCO pipes utilize a base pipe formed by rolling and welding steel plates, topped with a hardfacing layer. This manufacturing method allows for the production of pipes with larger diameters and greater lengths, while also resulting in a smoother inner wall surface that minimizes flow resistance. They perform particularly well in resisting high-stress gouging abrasion.

Q2: How do I determine the appropriate thickness for the wear-resistant layer required for my project?

A2: The selection of the wear-resistant layer thickness depends primarily on factors such as material hardness, particle size, concentration, flow velocity, and the projected service life. Typically, a thickness of 4–6 mm is sufficient for moderate abrasion conditions; however, for extreme abrasion environments (such as coal powder elbows in power plants), a thickness of 8 mm or greater is recommended. Our engineers can provide specific recommendations based on your unique project parameters.

Q3: Can you fabricate wear-resistant elbows or irregularly shaped fittings based on provided technical drawings?

A3: Yes, we can. We possess advanced capabilities in cutting, rolling, and hardfacing. We can custom-manufacture CCO wear-resistant pipe fittings in a wide variety of complex shapes—based on your provided 2D or 3D technical drawings—while ensuring that the wear-resistant layer provides effective coverage across all critical areas.
